Thanks everyone for fallowing along and the fantastic positive feedback .



Been busy as usual , had some crazy heatwave here last weekend , 4 days with temps in the high 30's .

Also did something nasty to my knee , that's slowed me down a bit can only do stuff standing , it's getting better ... very slowly , 30 years of racing motorcycles didn't help .

been working on the trunk lid and the hood ,

will start with the hood .






This bottom of the hood started out as just a test in the new shop to test the waters , I had a couple of gallons of resin that were really old and had probably been below the 45 degree limit . so i did a copy of the bottom of the stock hood , this would give me a look at where i could make more room foe goodies . I had to trim a bunch for the fenders , so as time went along I decided to use it .

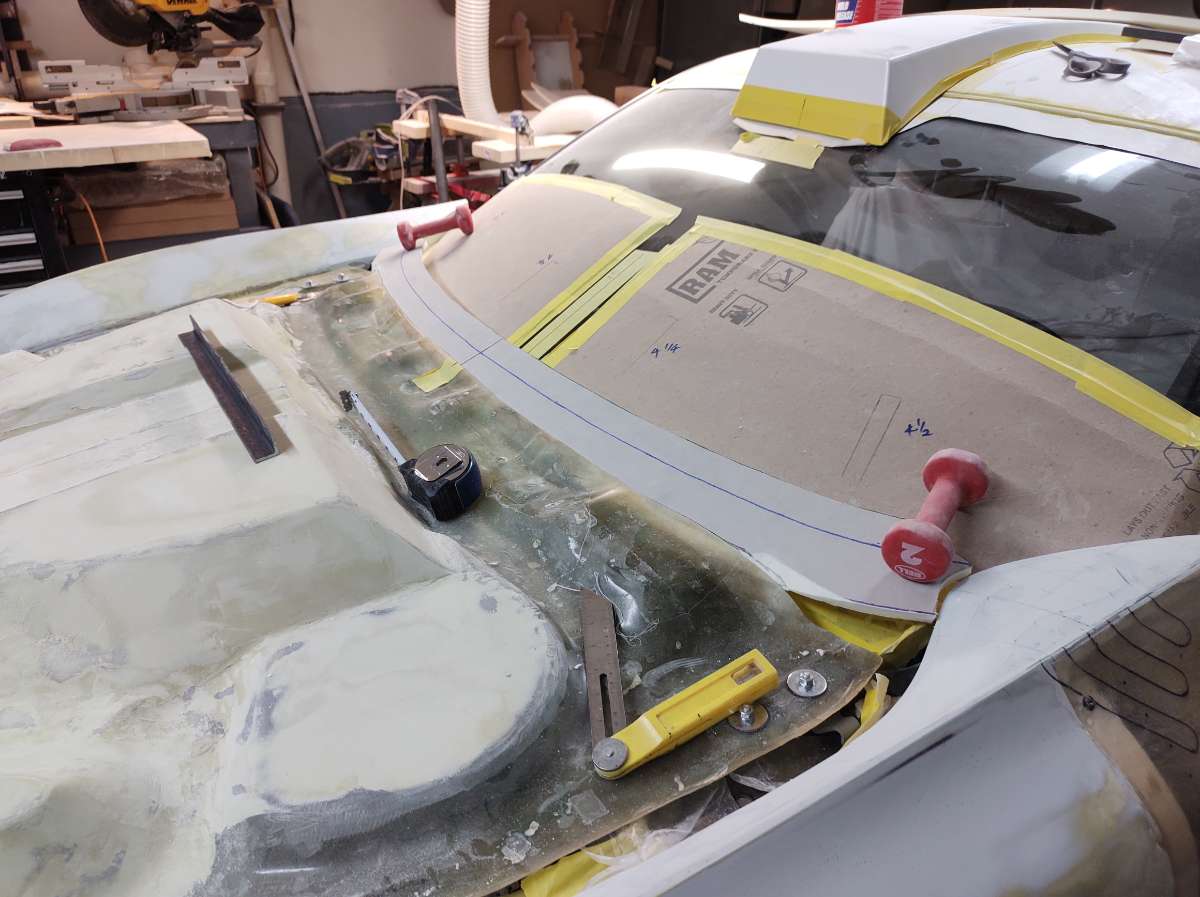

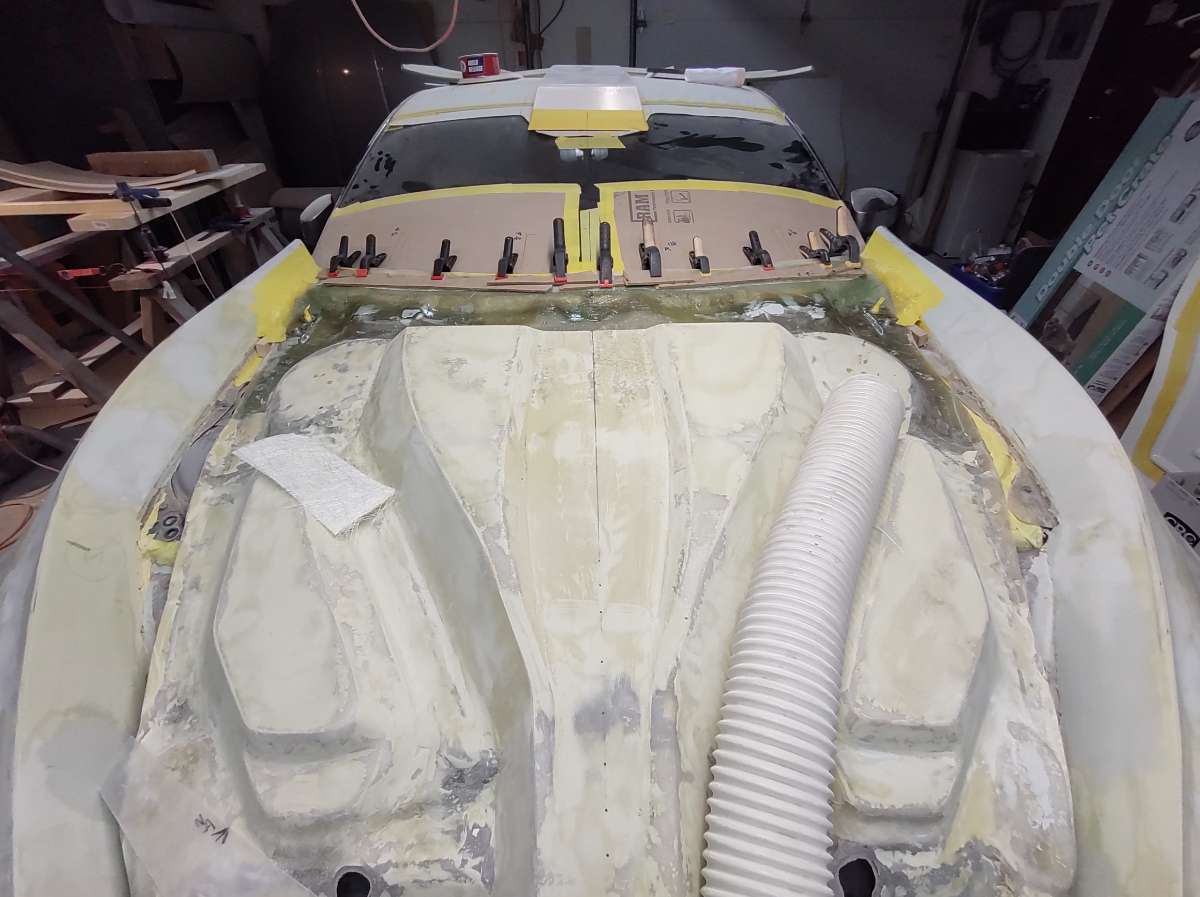

Now I need to extend the back of the hood ,these pieces are just to support the the part for the fiberglass .






Making the part to slide under the back to hold up the extension







once glassed it will get trimmed at the blue line , you have to go past to get a consistant thickness




checking  supports  to see if it's still level

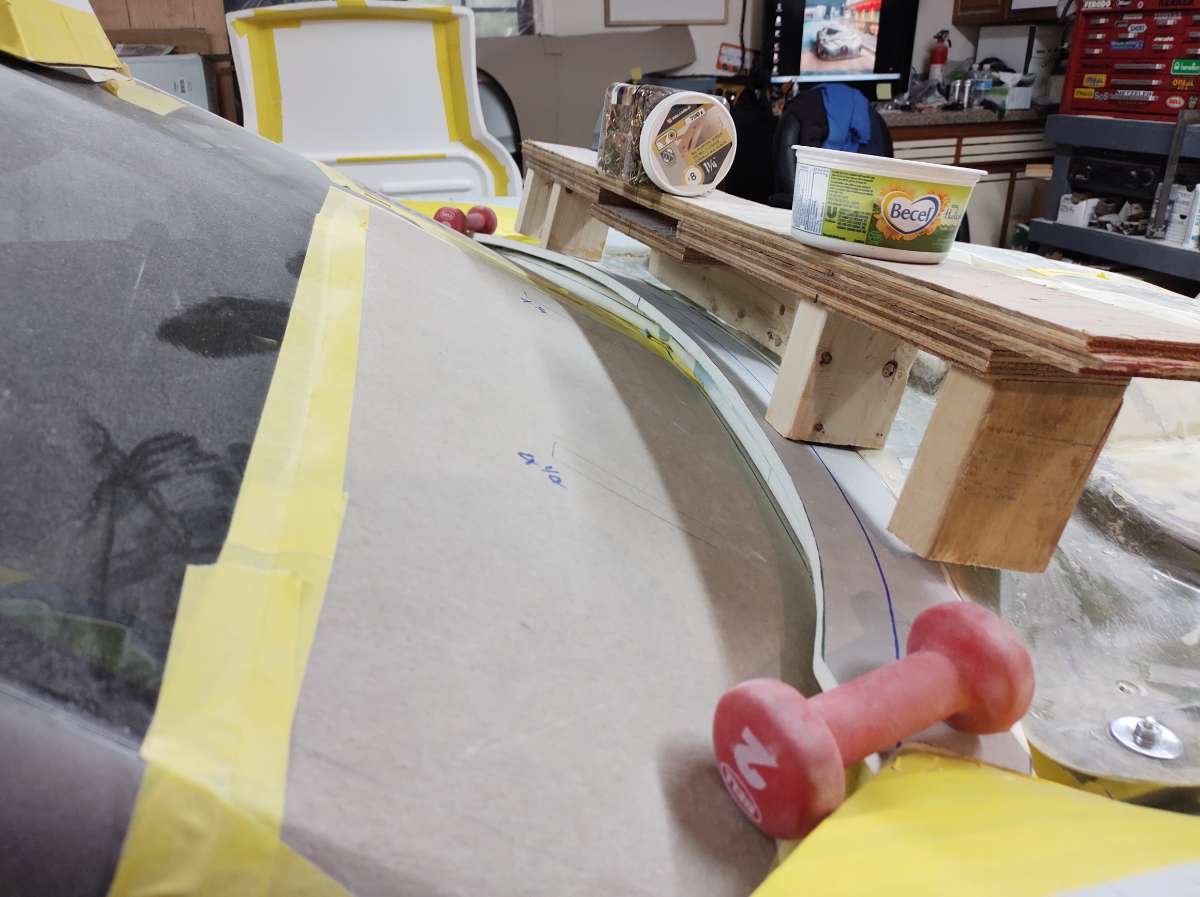

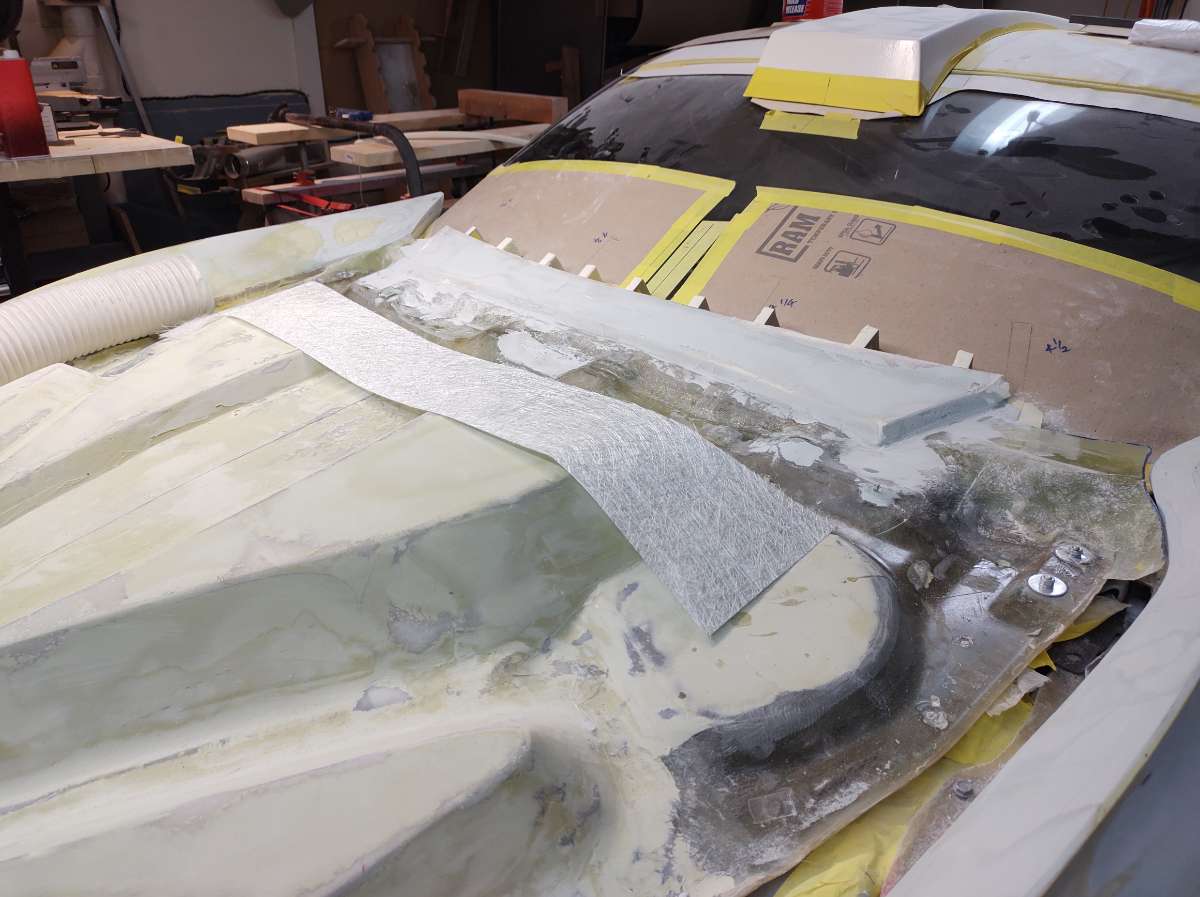

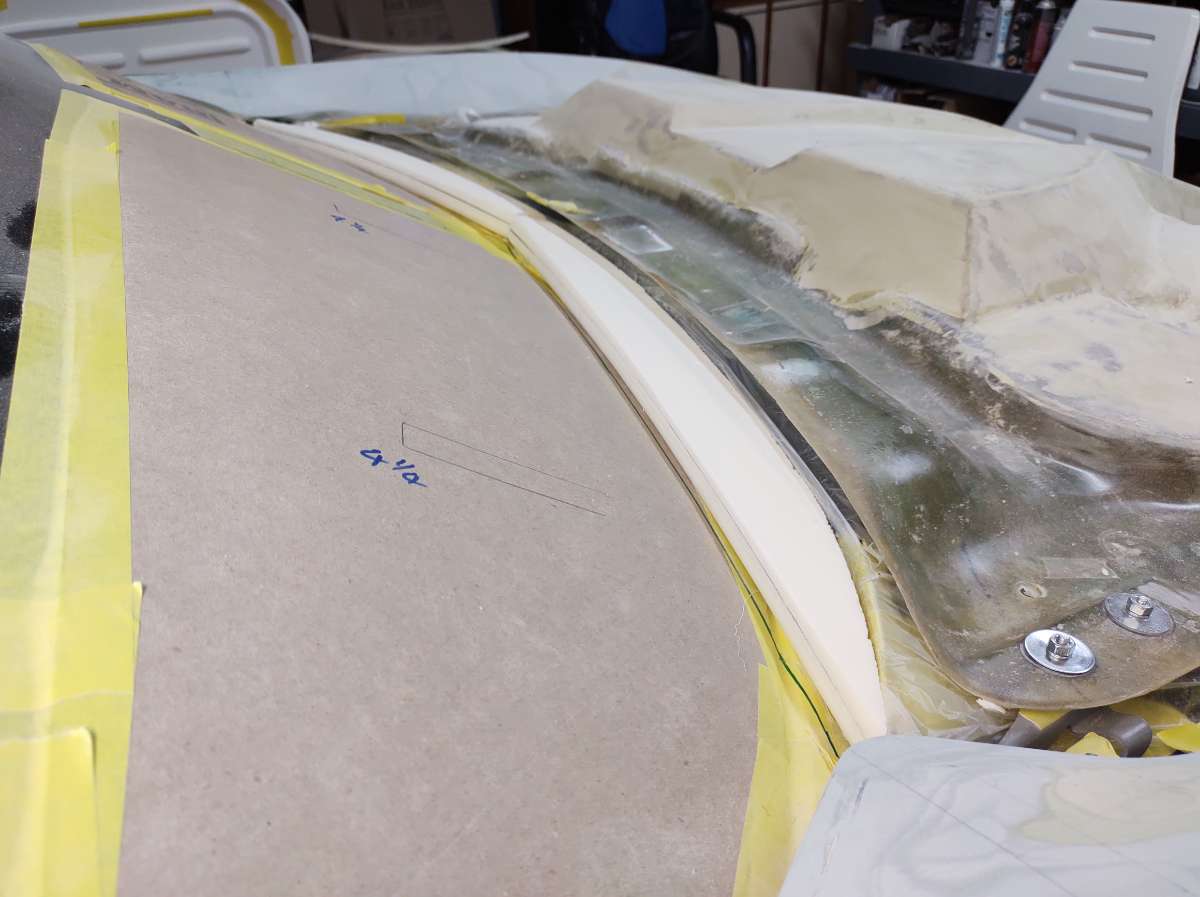

Here is the part sanded to a taper to slid in , the plastic part behind will go on top so the glass wont stick to the support .

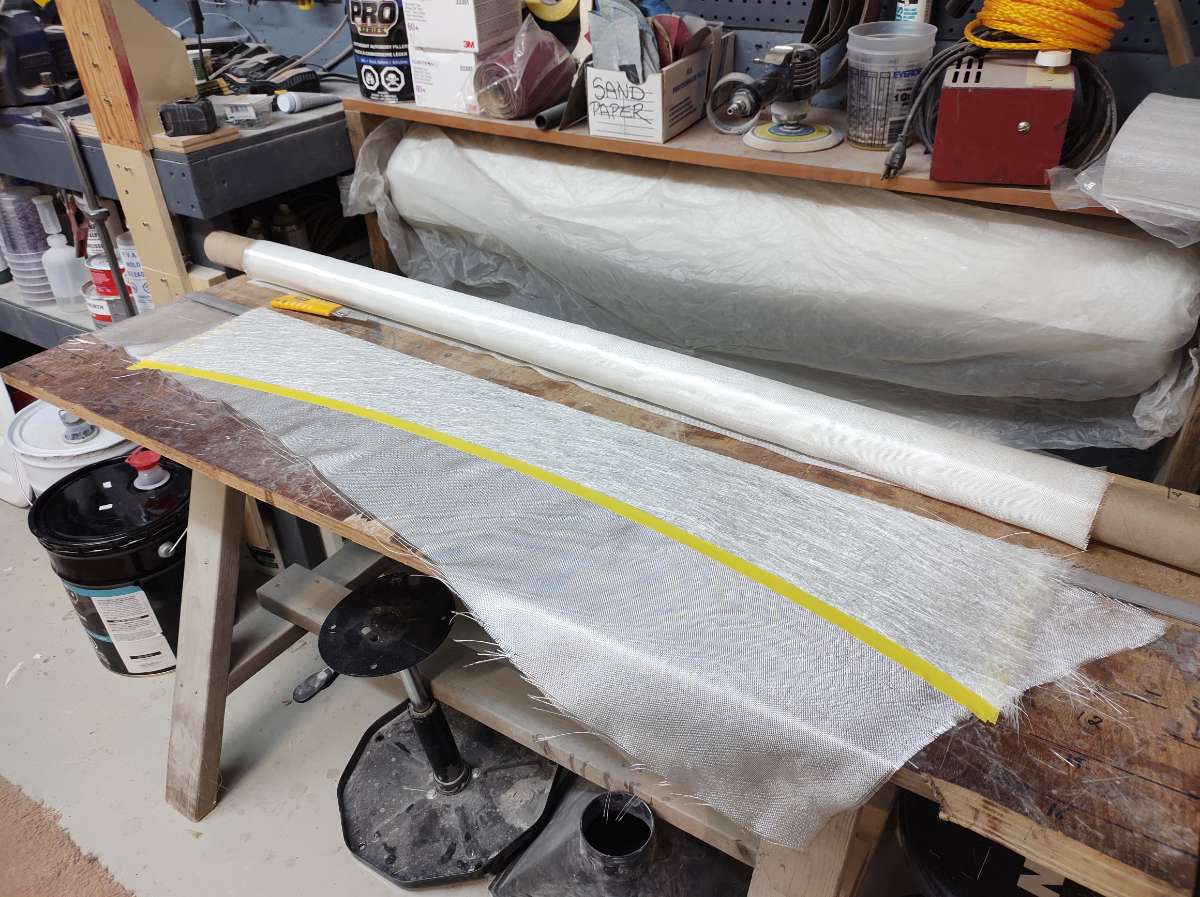

roughing up the glass for a good bond




getting ready to bond it down




holding it down , I use body fill to glue the two pieces of foam together .




next is to add a little filler to smooth the transition

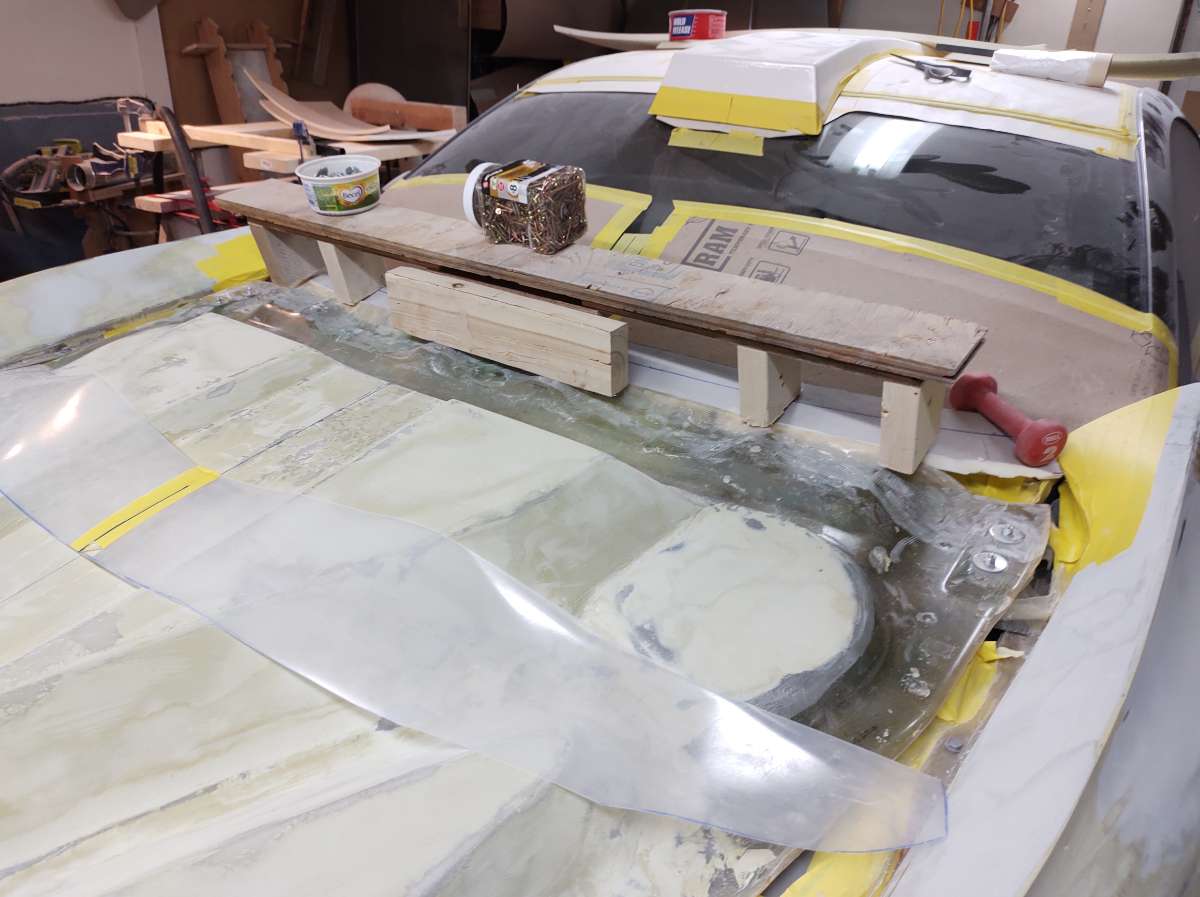

 then three units of mat

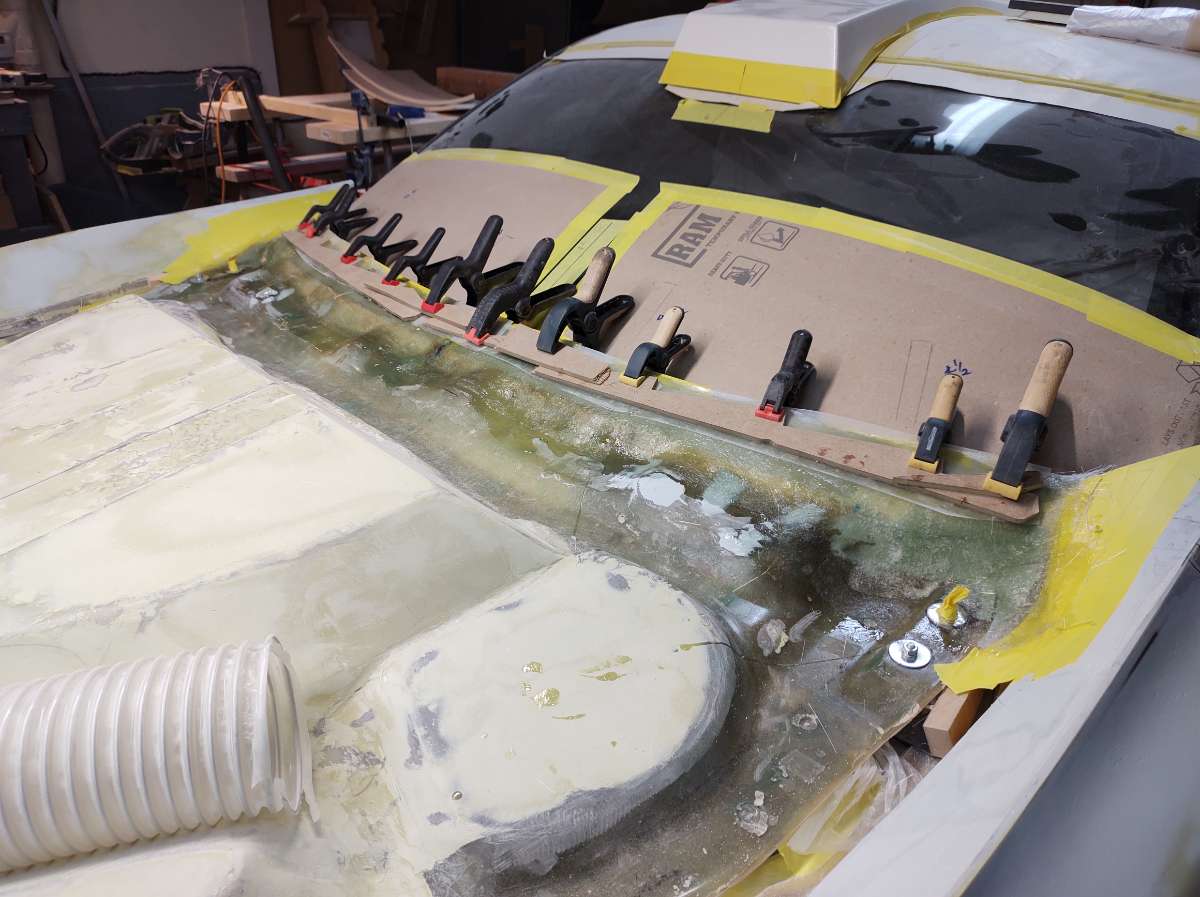

another strip of plastic to avoid it sticking and some wood and squeezie clamps











  • Like 1
Link to comment
Share on other sites

Oh the other thing I should mention is I bought a 3D printer to make some parts for the car , oh course i have have to learn how to use it first , ( more time , later nights )

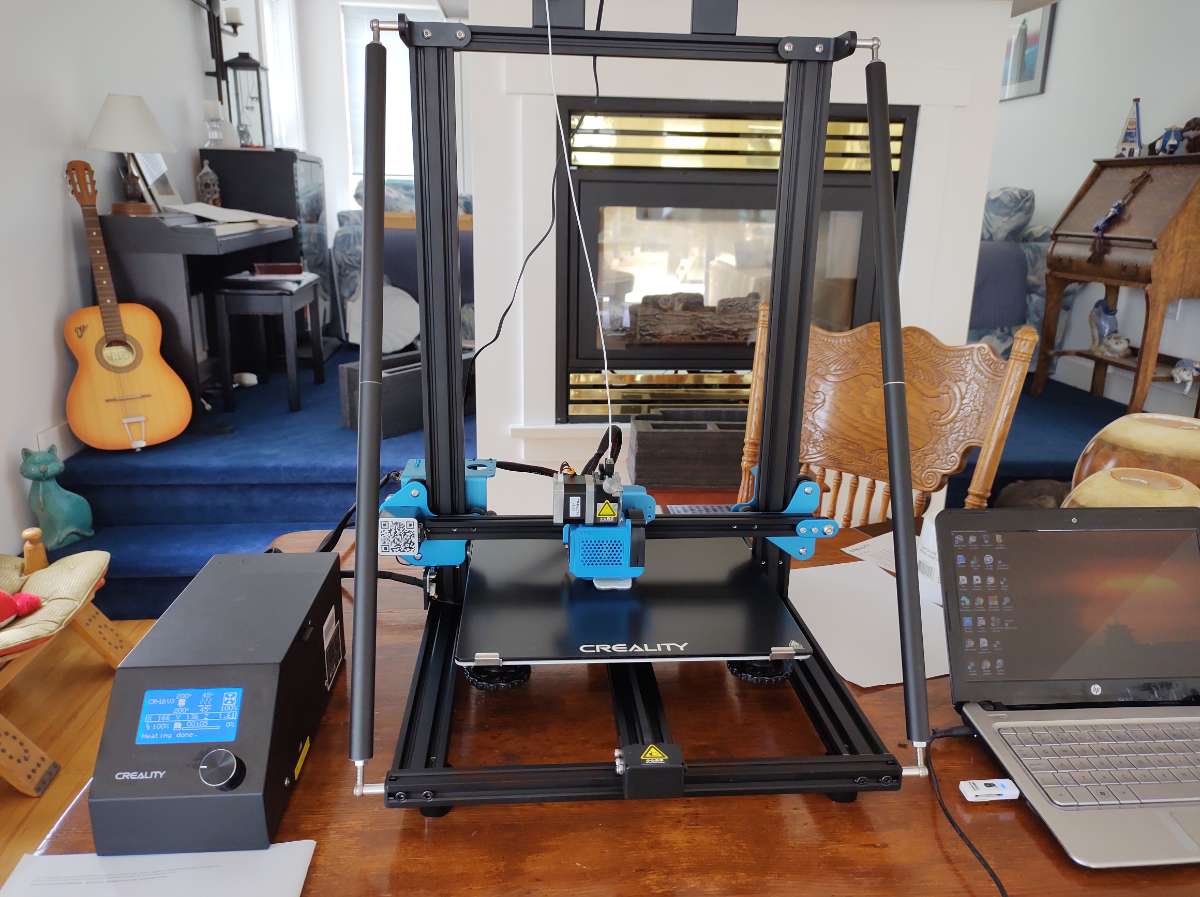

So I bought a Creality CR10 V3

I have been working on drawings for the emblems and a Crest  ( badges )

so far so good  .






I have to rearrange some stuff  in my office for It .

It will print 400 x 400 x 600 mm

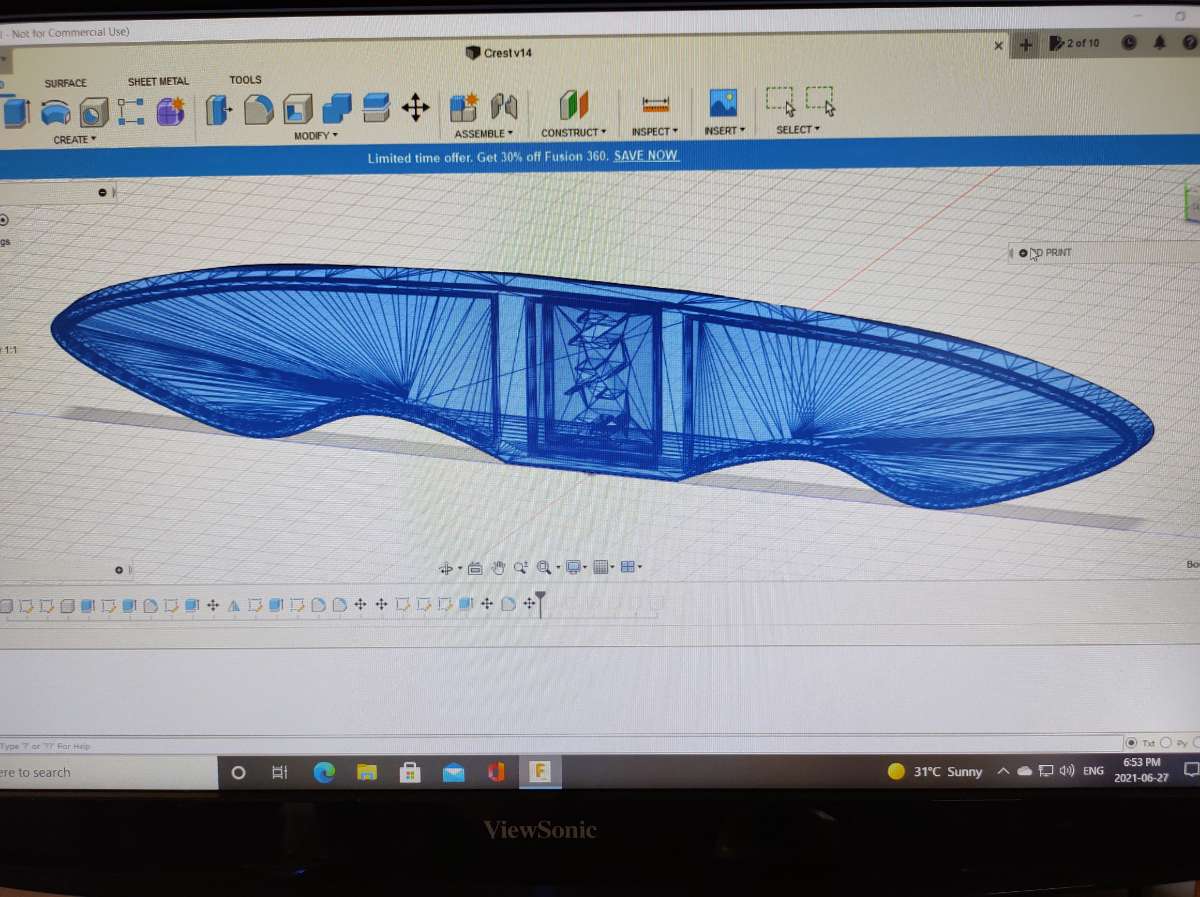

The verity of filament is ridiculous , I can print these in chrome or black chrome or any combination of colors  , I have to learn CAD again .....not easy  .

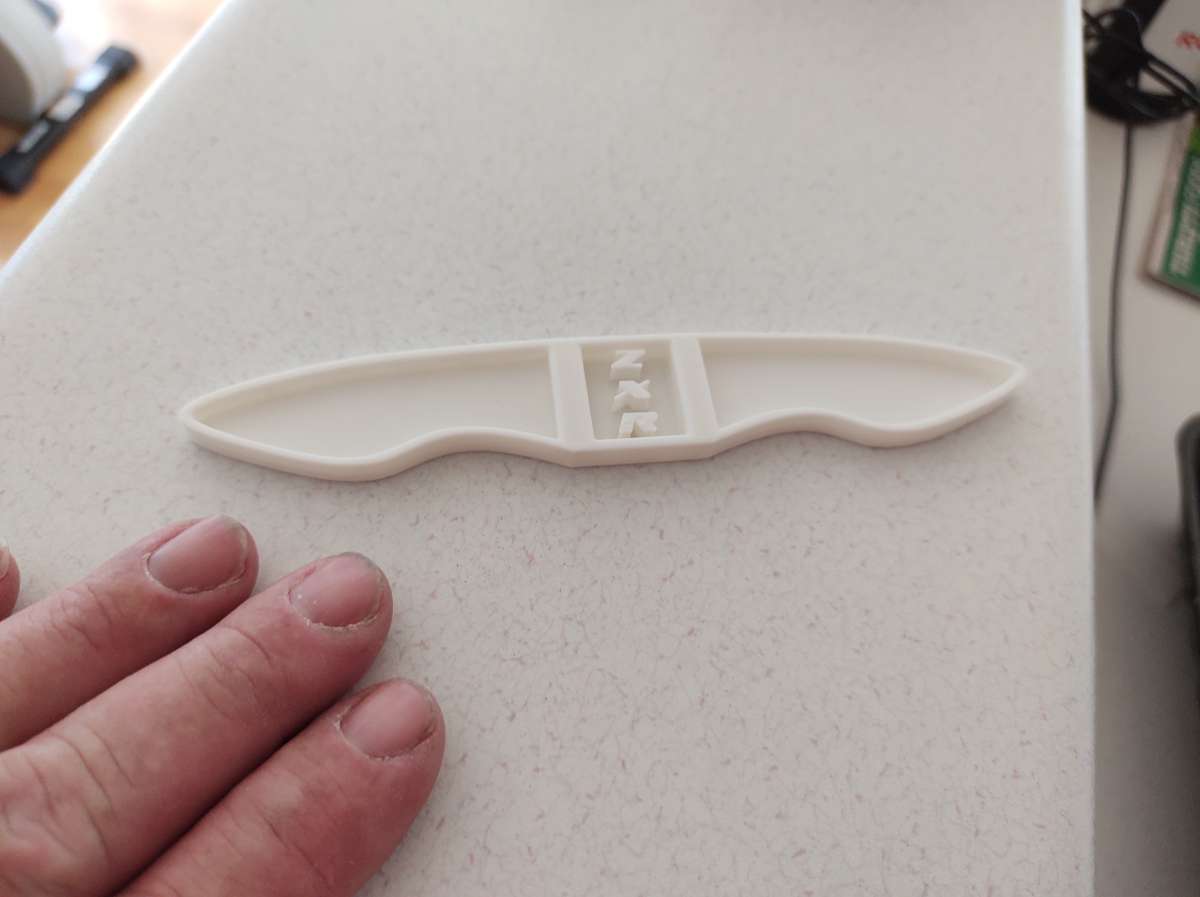

this is the first one , needs tweaking









just an idea of what it would look like , of course it would be set in flush

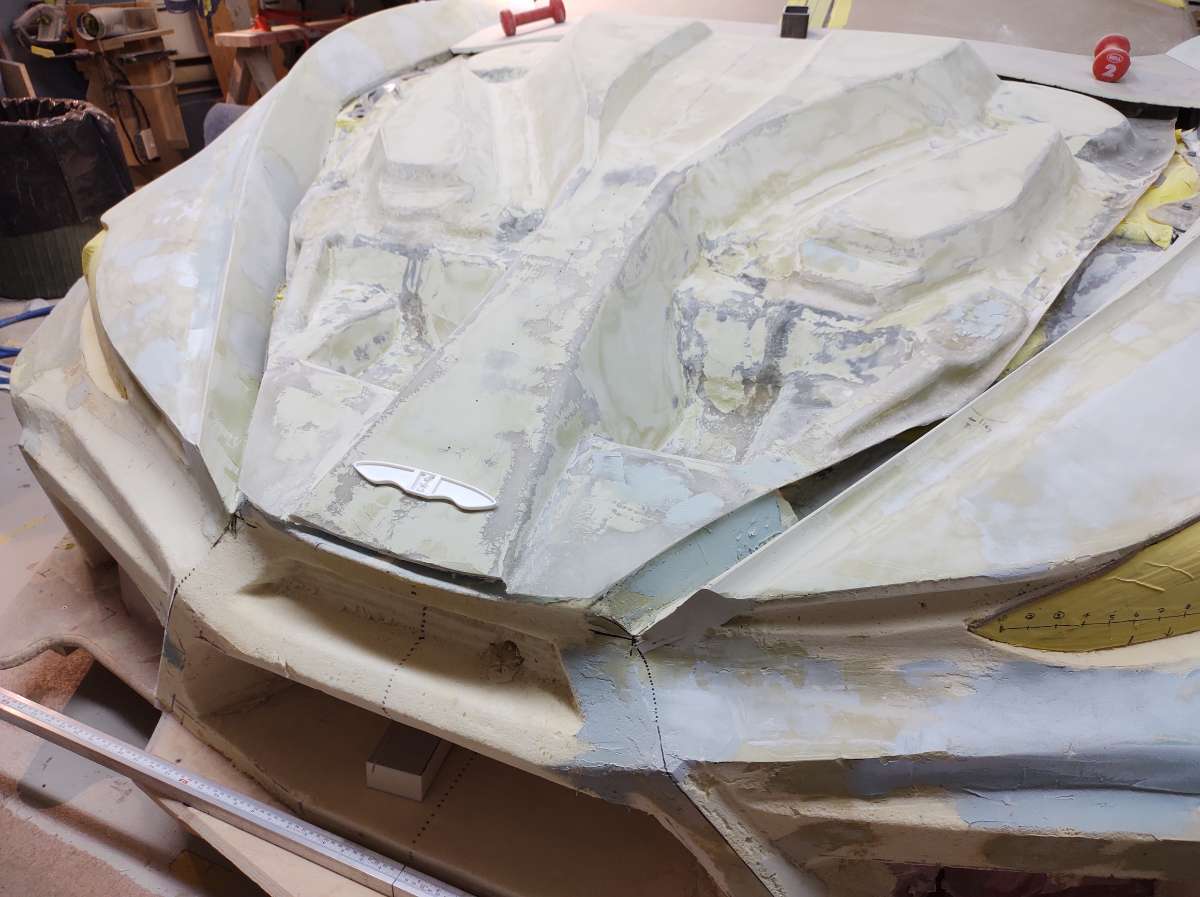

And on the hood .

times up . maybe tonight i can post some pics of the trunk lid progress .

Cheers Mates



  • Like 5
Link to comment
Share on other sites

Ok  back to the hood , I know it's kind of boring .....

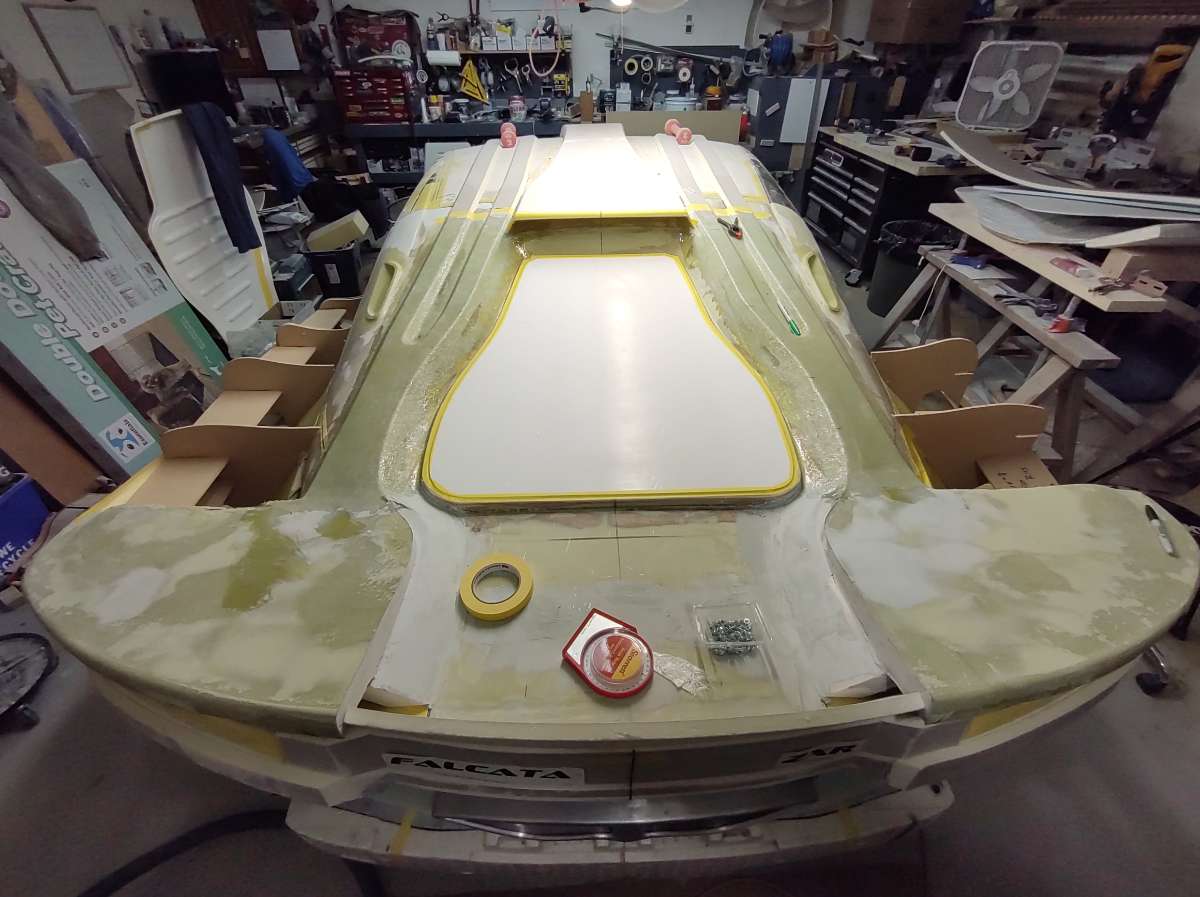

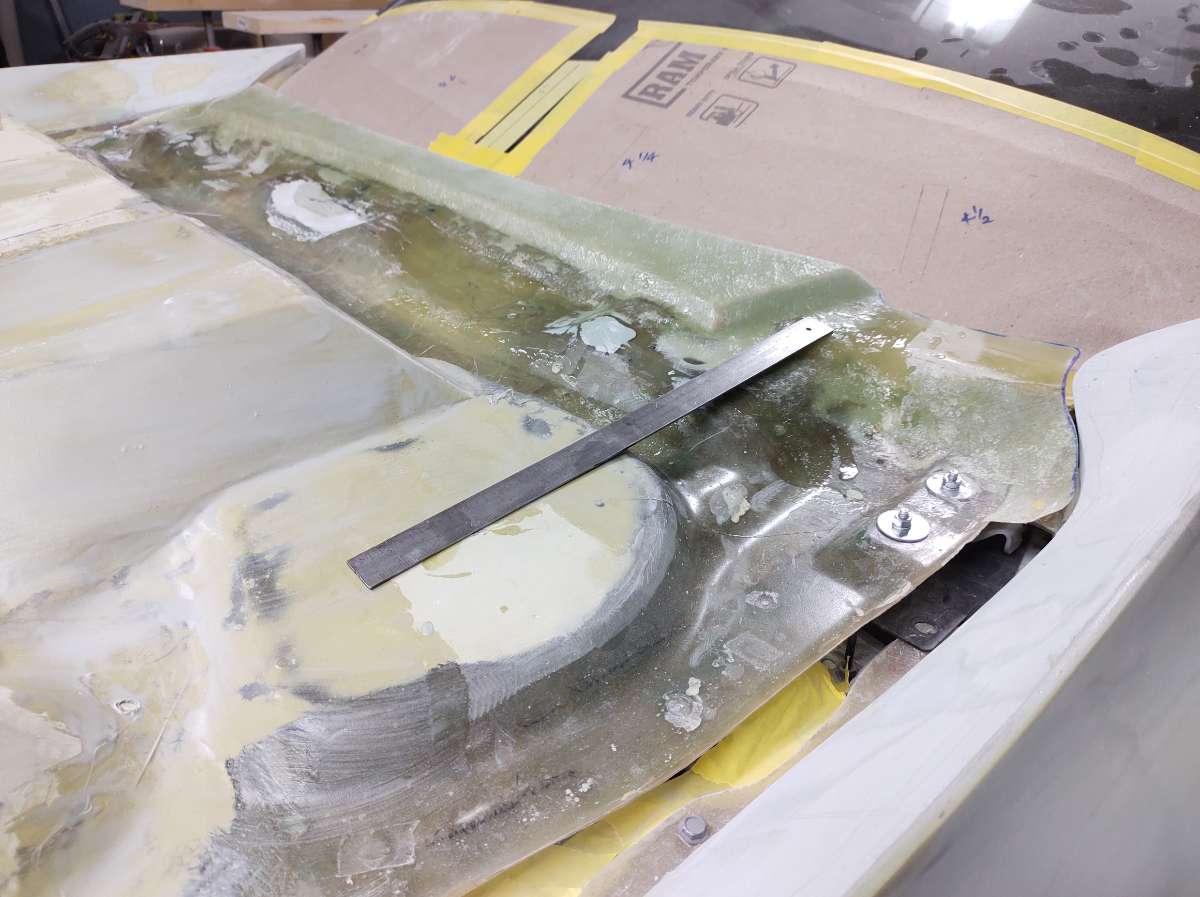

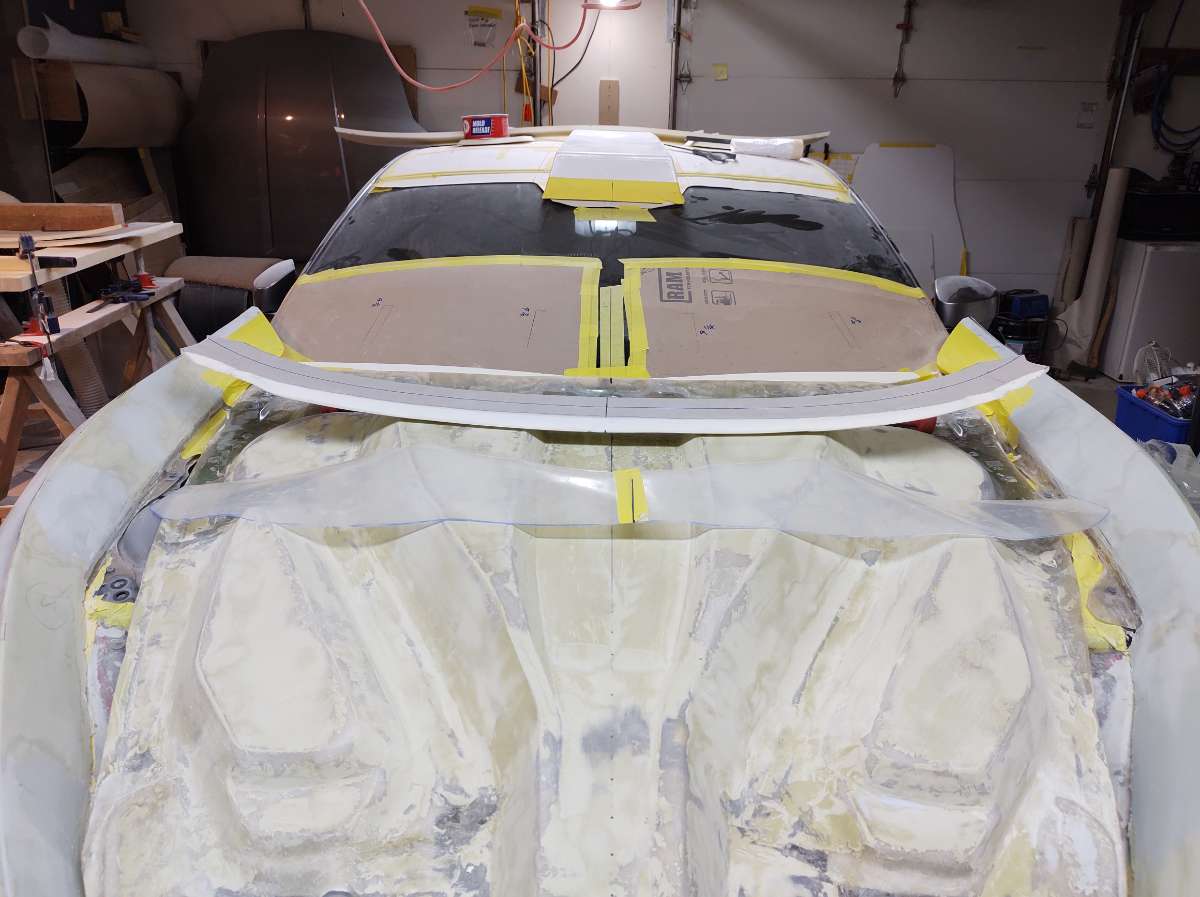

So here is how the hood extension came out  , a little wavy at the back in the middle . but that will be cut off .

I don't want to see the wipers , they are just not nice to look at .

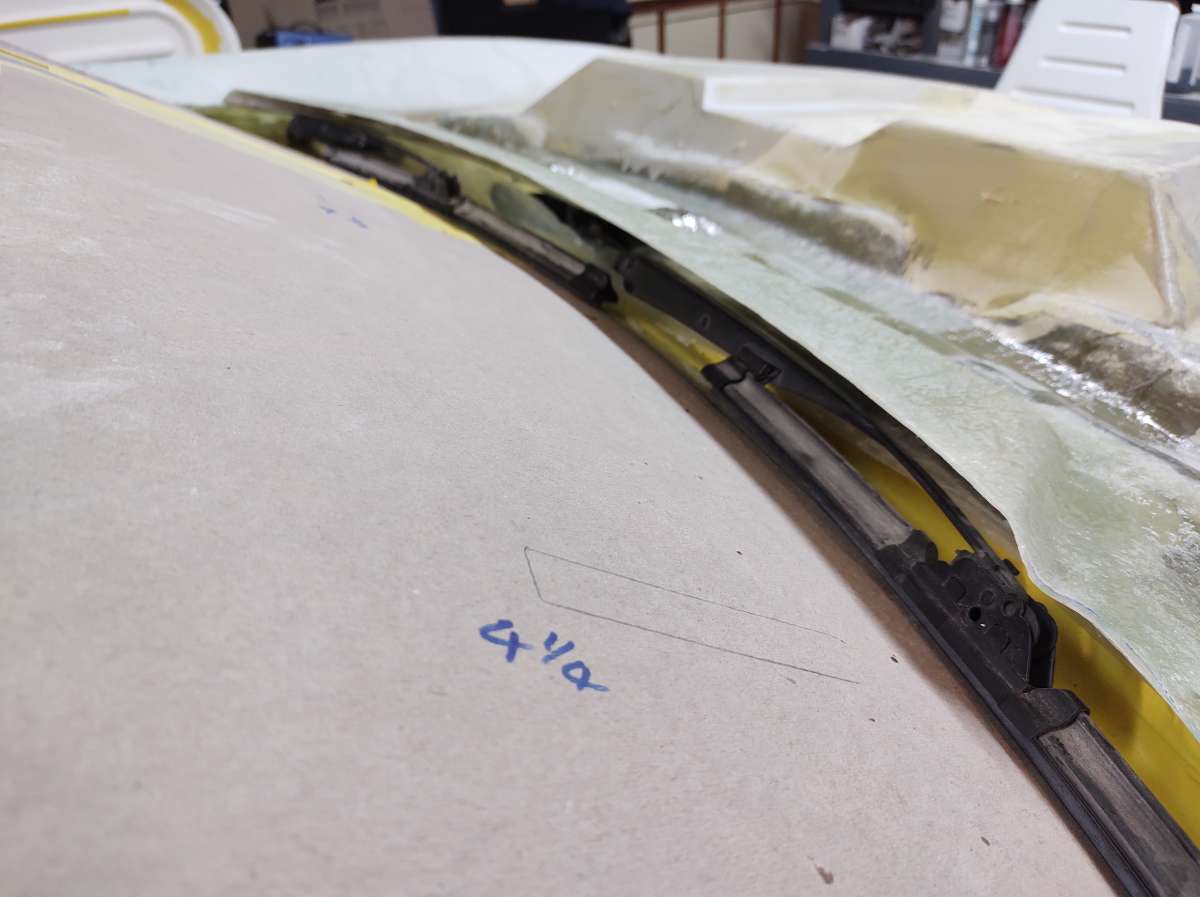

Making the small rise out of foam for the wipers to fit under




gluing it down

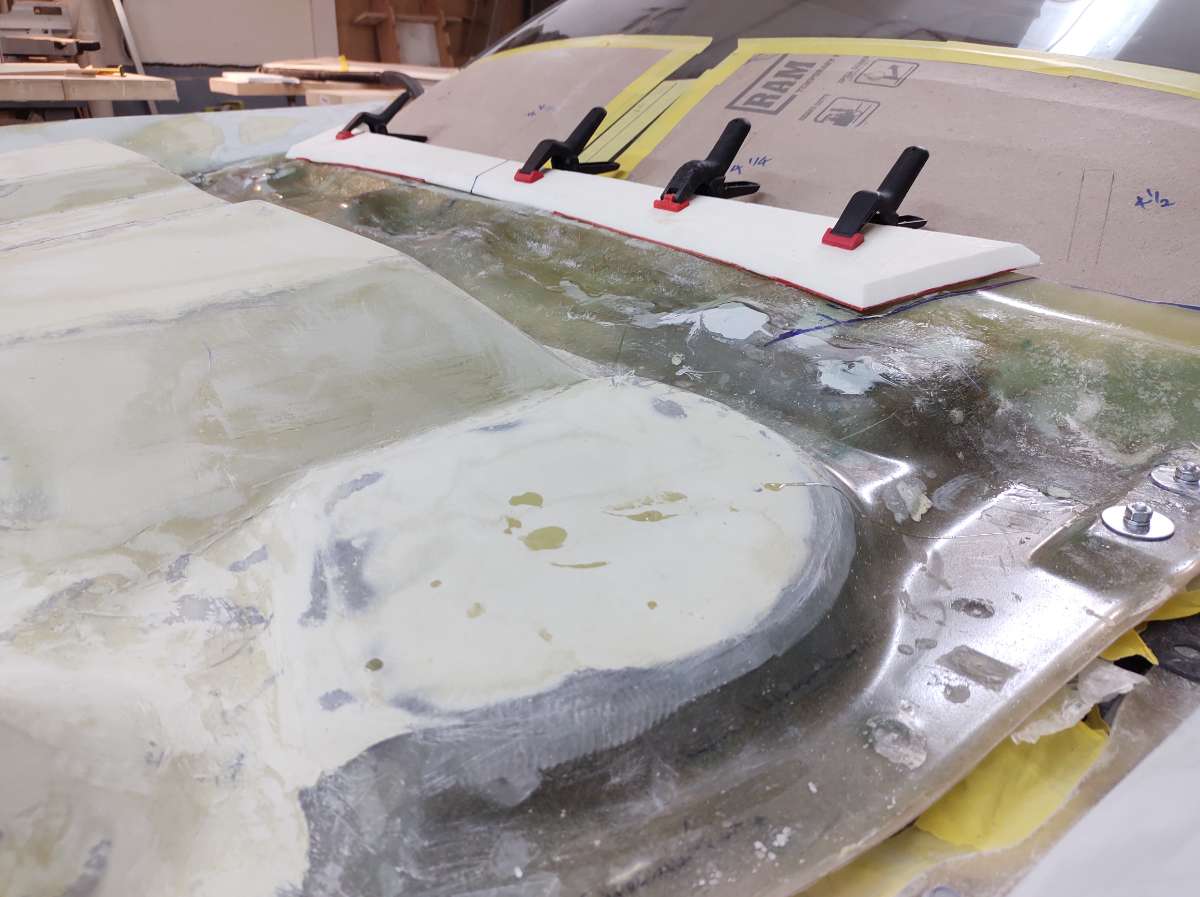

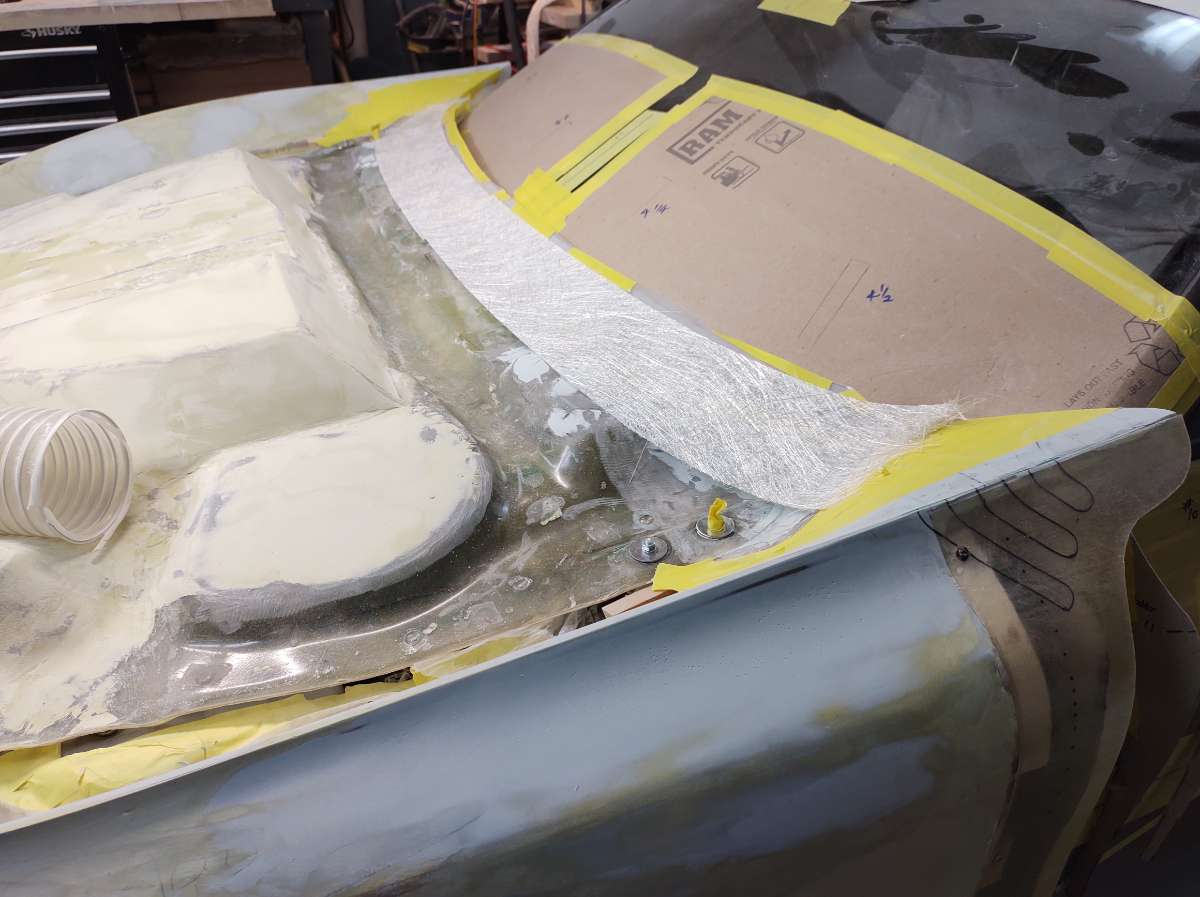

Some body filler , then one unit of mat and one unit of roving , covered by two units of mat glass .






the roving gives it strength






I mixed a bit too much resin ( heat getting to my brain ) so I added some filler and painted it on the fender  .

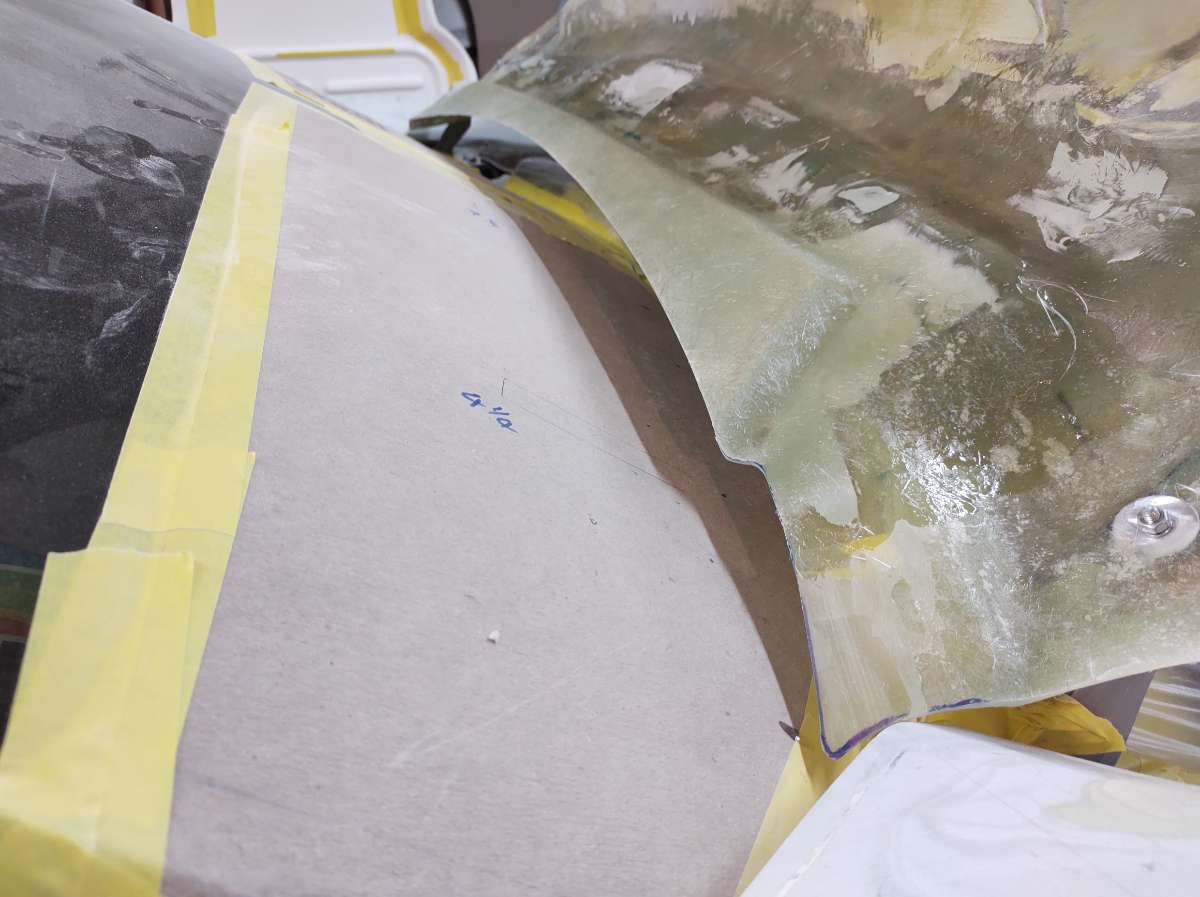

Glass ready for a trim

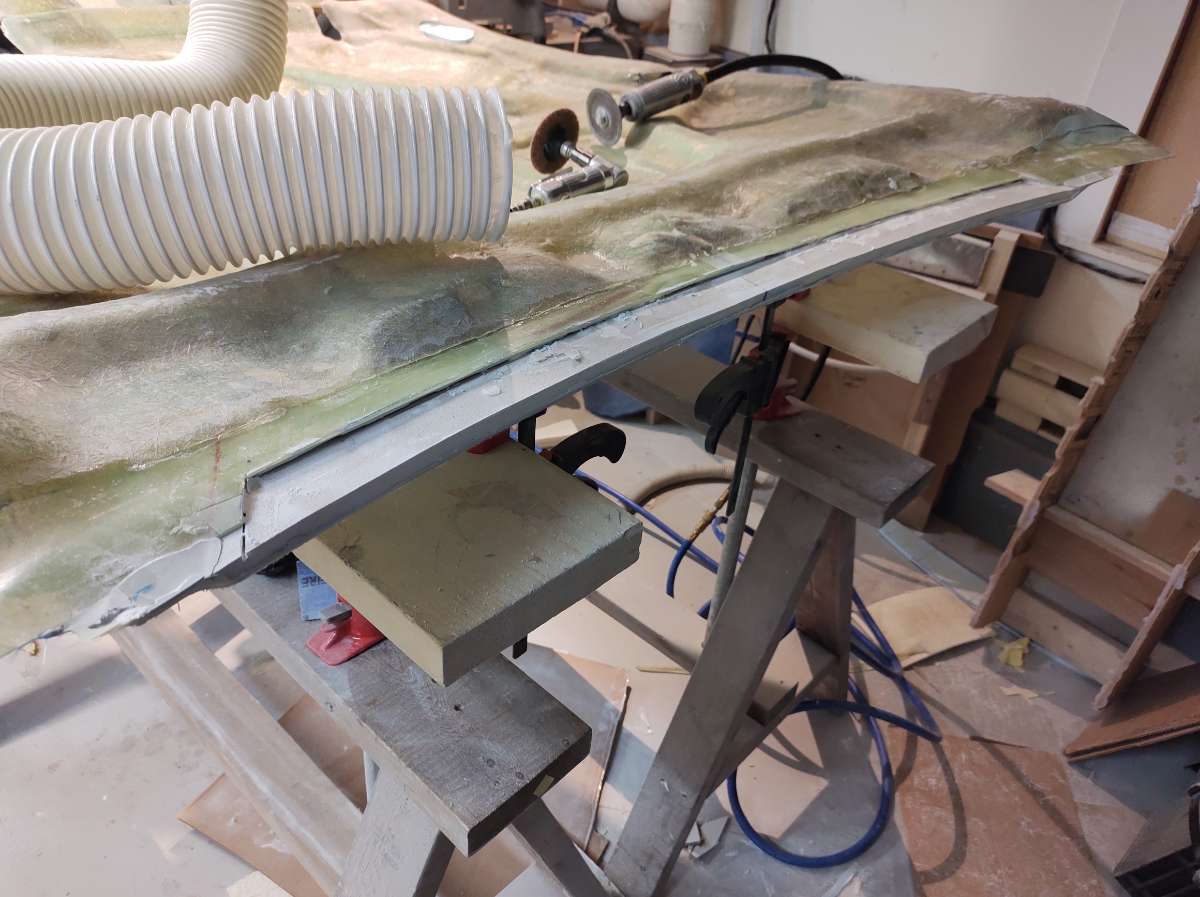

Hood is upside down here to cut the bottom away and remove the foam .

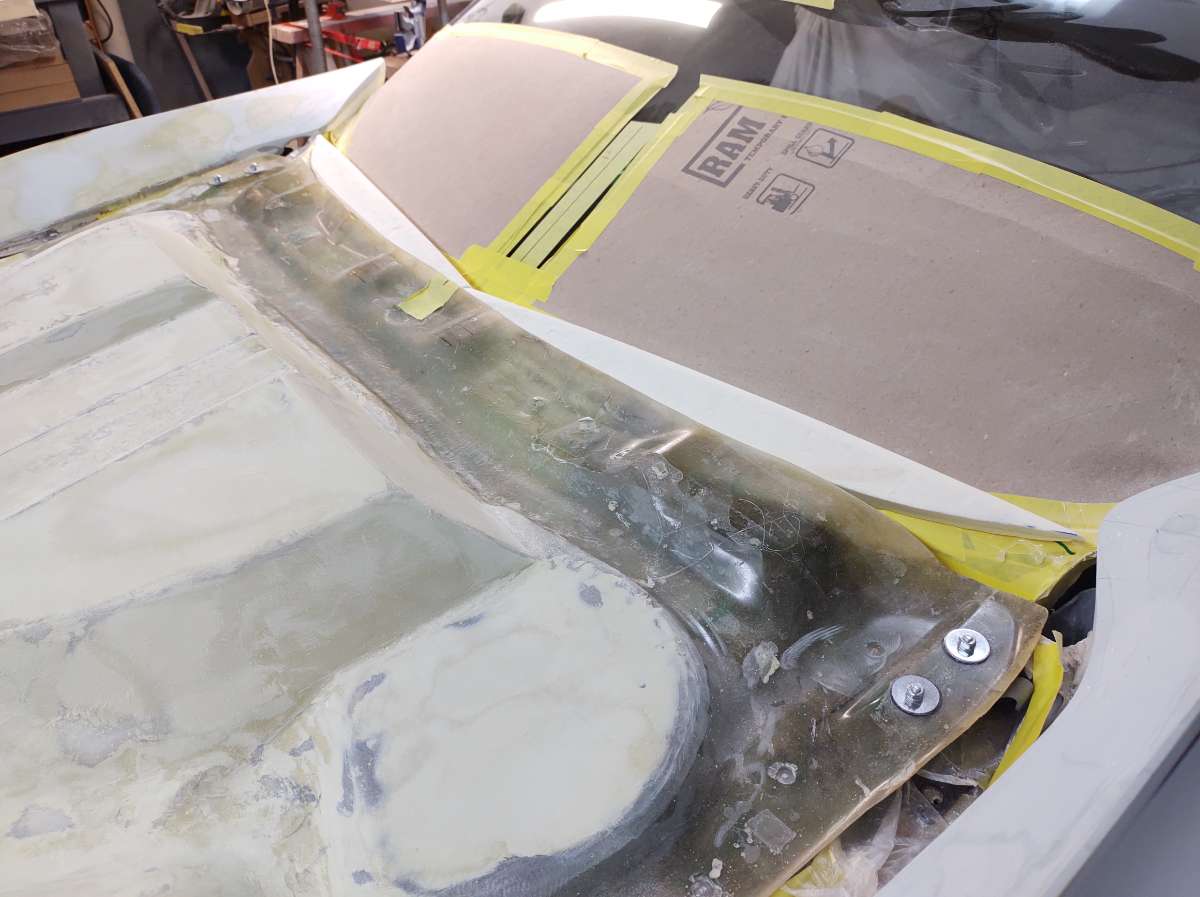

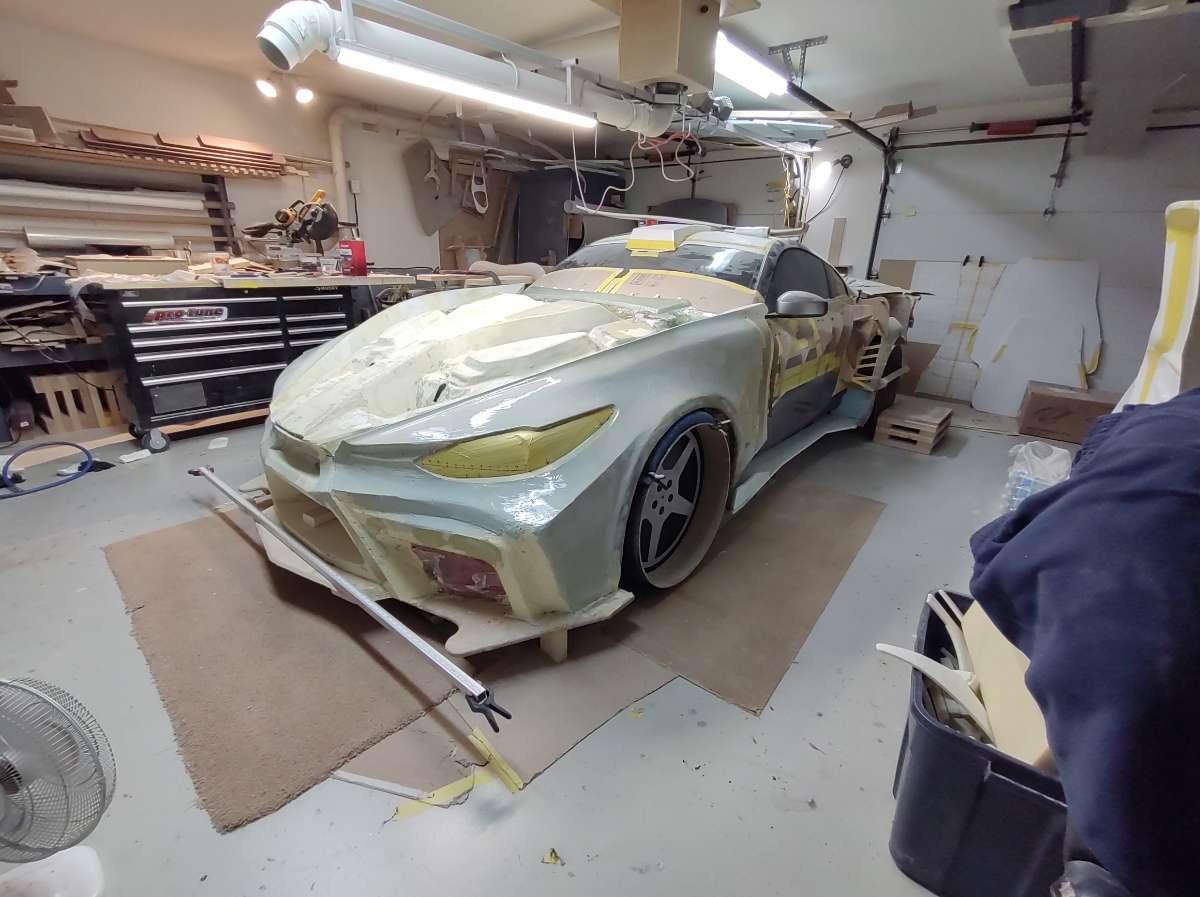

Trimmed and back on






Look no more ugly wipers ..

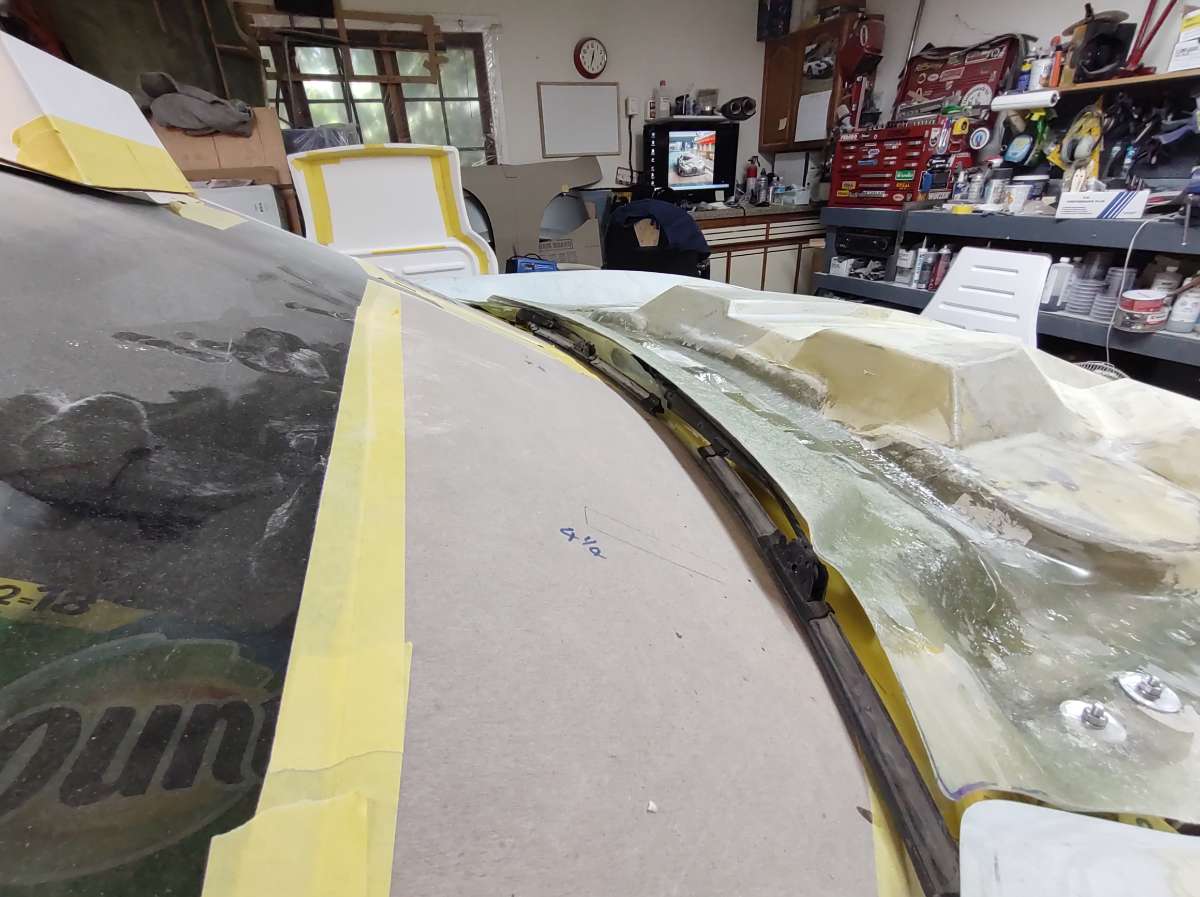

Here you can see when the top of the hood goes on the rise will be very small

I have been working on the trunk and rear deck also , should have an update on that soon .

Cheers

  • Like 5
Link to comment
Share on other sites

And once again thanks gents for the kind words , you make me out to be some kind of wizard !! . thanks so much it really does help to get through the dark times , dragging my butt , scratching my head thinking how do i do this next bit.

So sorry to say more boring stuff for now .

First the hood latches .

Earlier on I made provisions for the latches to go .IMG_20210713_144150369.jpg.2fb2bb5dd898146bd571bbadea609a6e.jpg



I used the radiator mount for the latches , so it's easy to drill in the right place for the hood latch pins .

This is still the bottom part of the hood , so I needed to cut the holes for the latches , and then cover them , so once the lower hood is molded I will know where to cut out the holes for the latches .







  • Like 3
Link to comment
Share on other sites

Hi

I must apologize for the last post , I started way too late and was falling asleep ....

So here we go .

back to the back of the car .

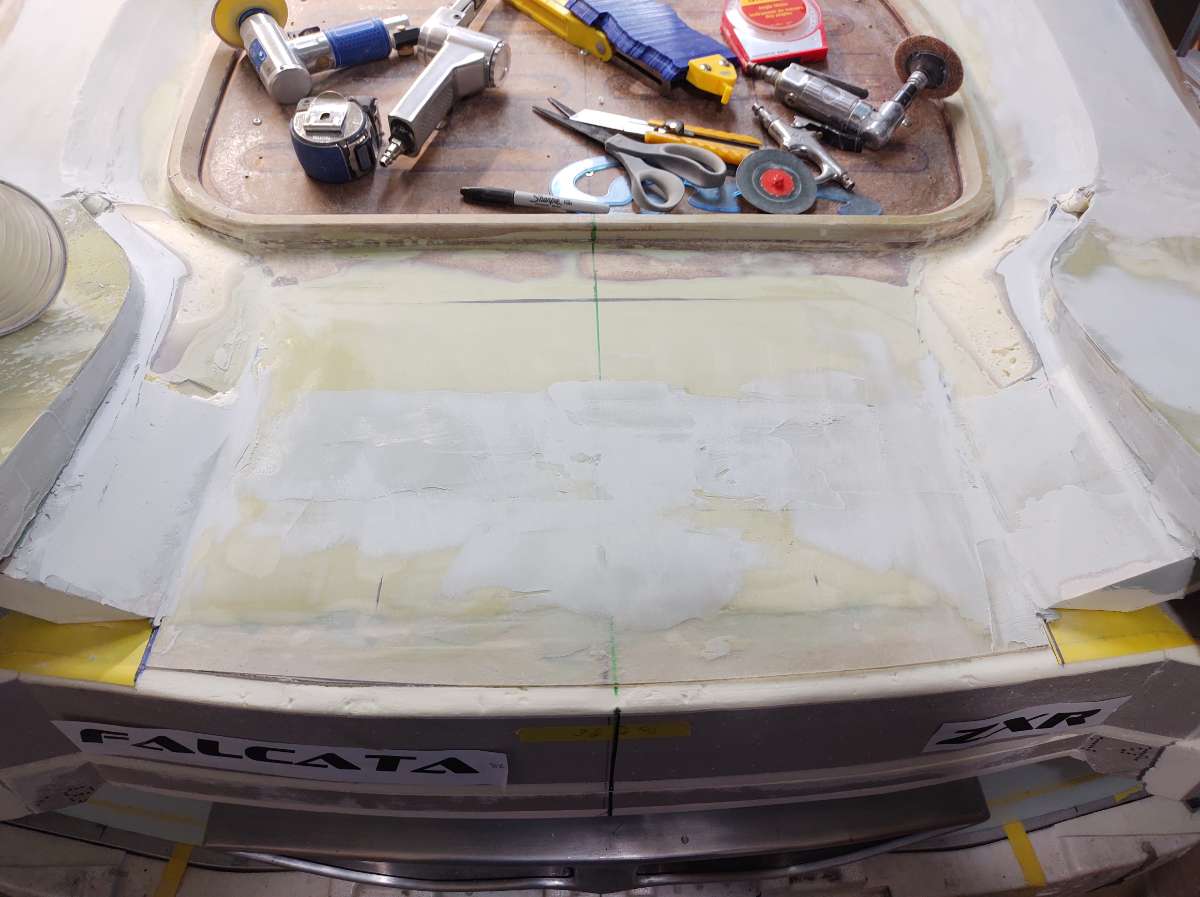

Here you can see body working in the Batman humps , I glued the two wooden bucks back on and used the laser to find my intersecting point where the quarter and the deck meet .







once the deck lid is set in stone so to speak , i will trim the trunk lid to fit






I put tape on just to see how things are shaping up , the tape doesn't show all the curves but it helps .

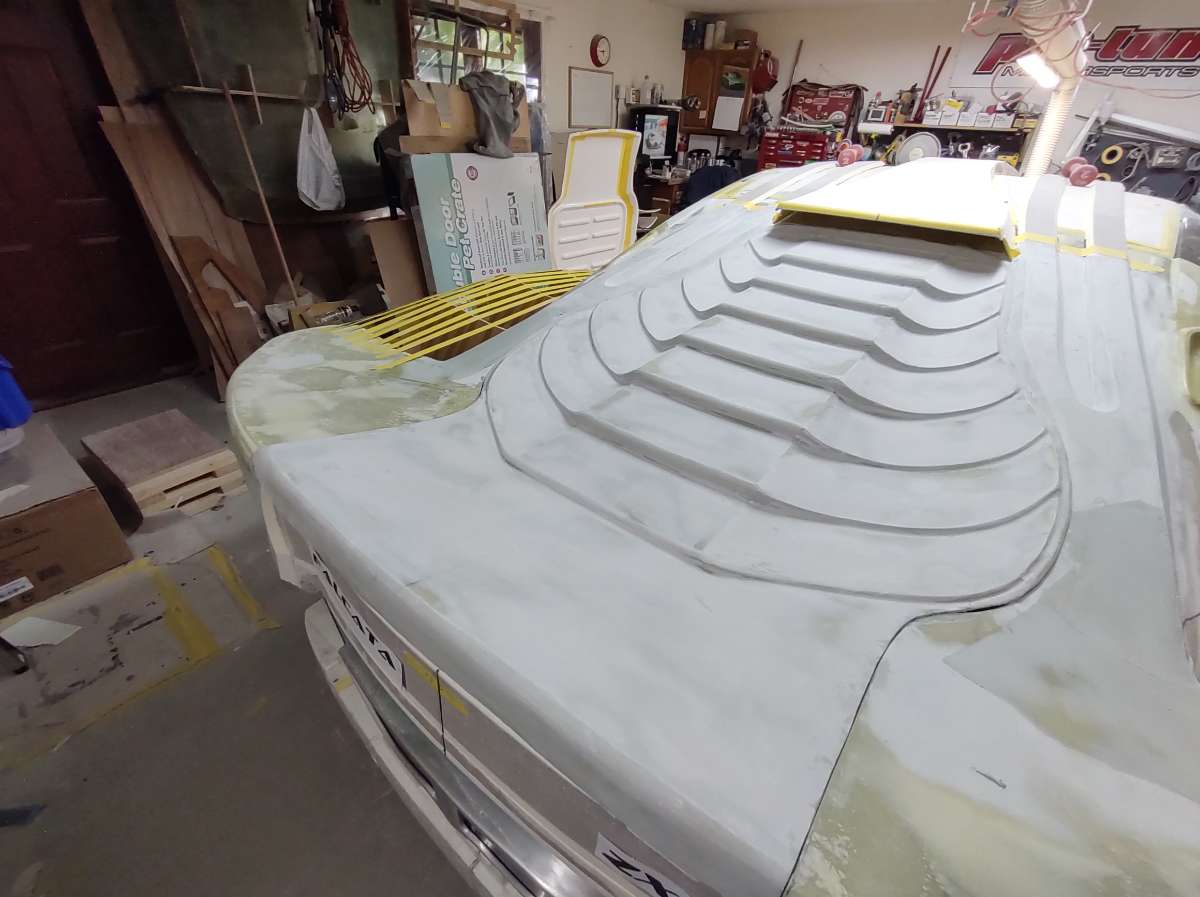

can't wait until the roof is finished and I can foam the quarter panels in !!






well that it for today , off to the shop to do some more .

Cheers



  • Like 6
Link to comment
Share on other sites

Hi everyone

Another update




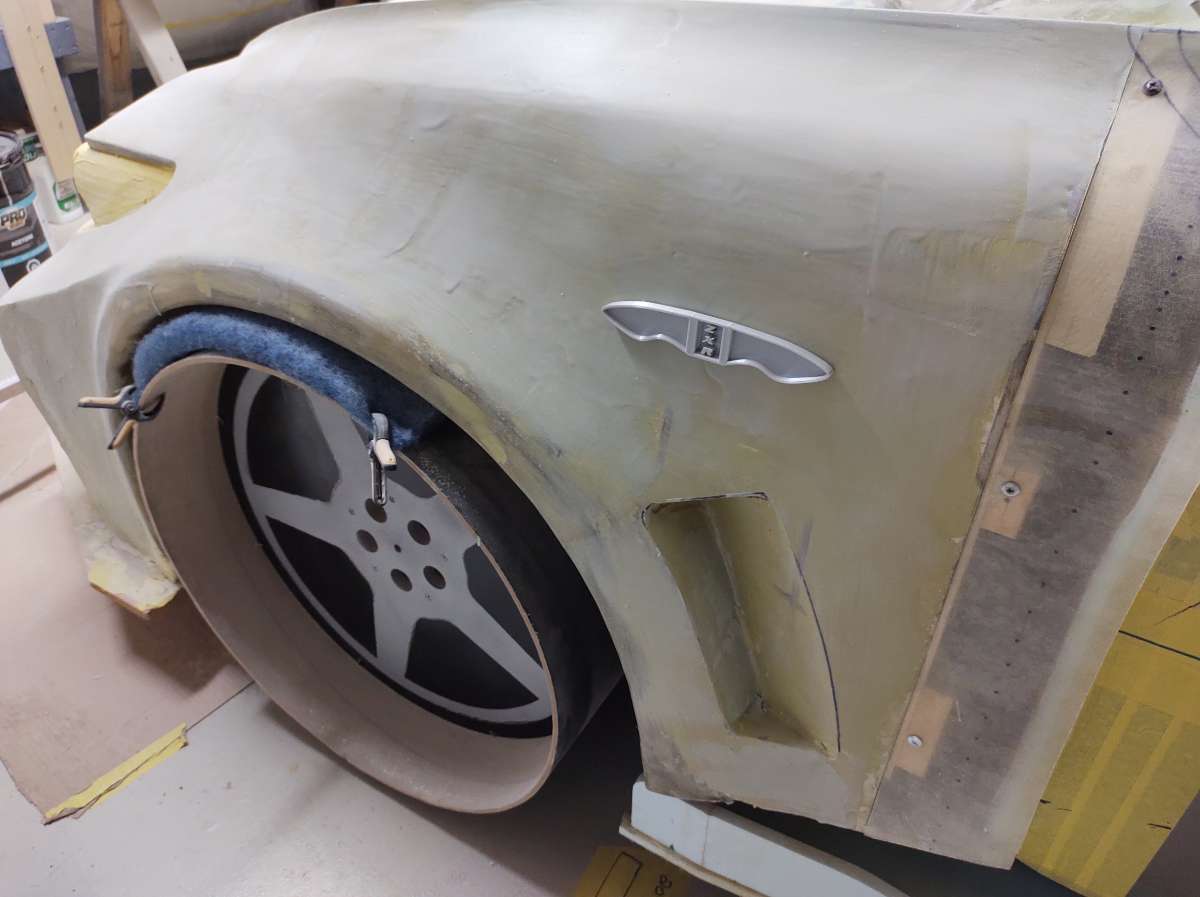

I have been working on emblems and crests with my 3D printer












Onto the quarter panels .....I have lost a lot of time this past couple of weeks with helping people etc .

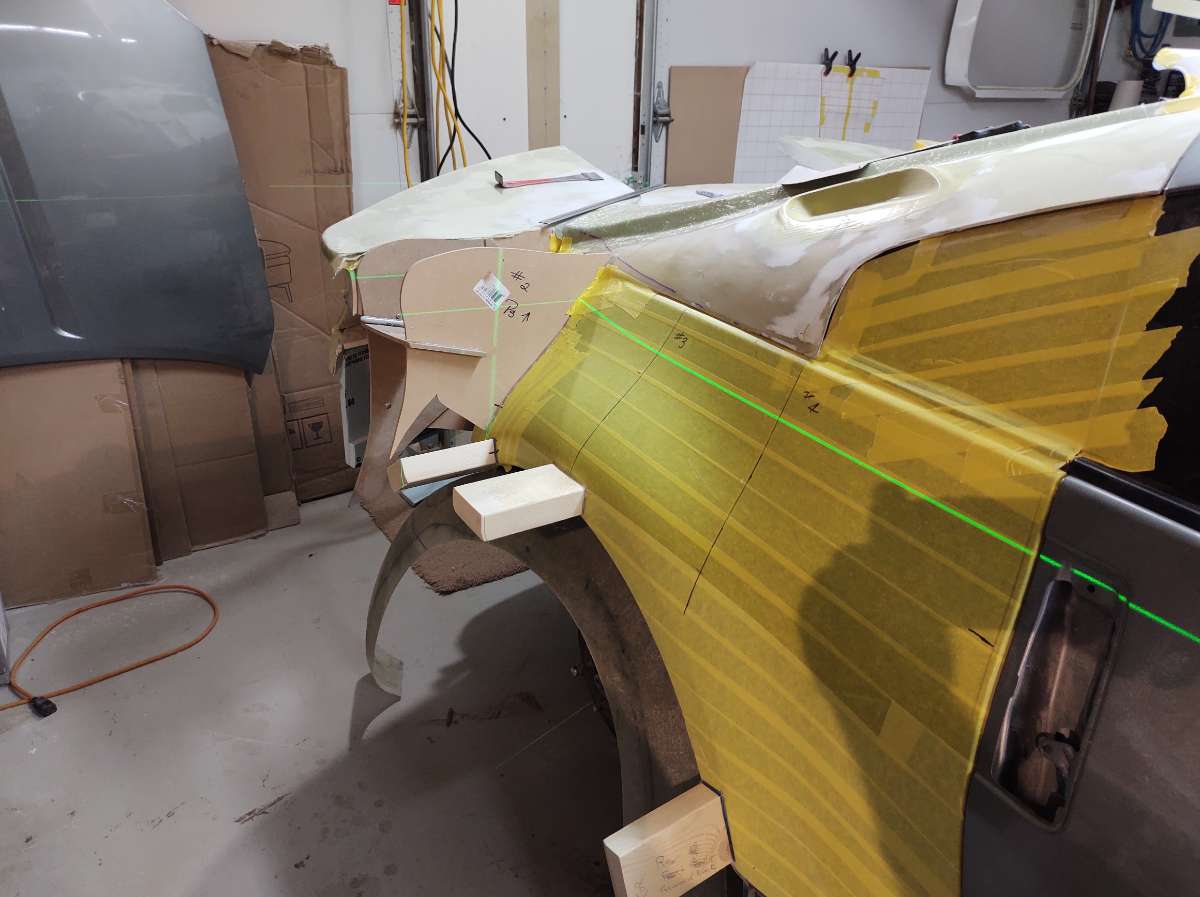

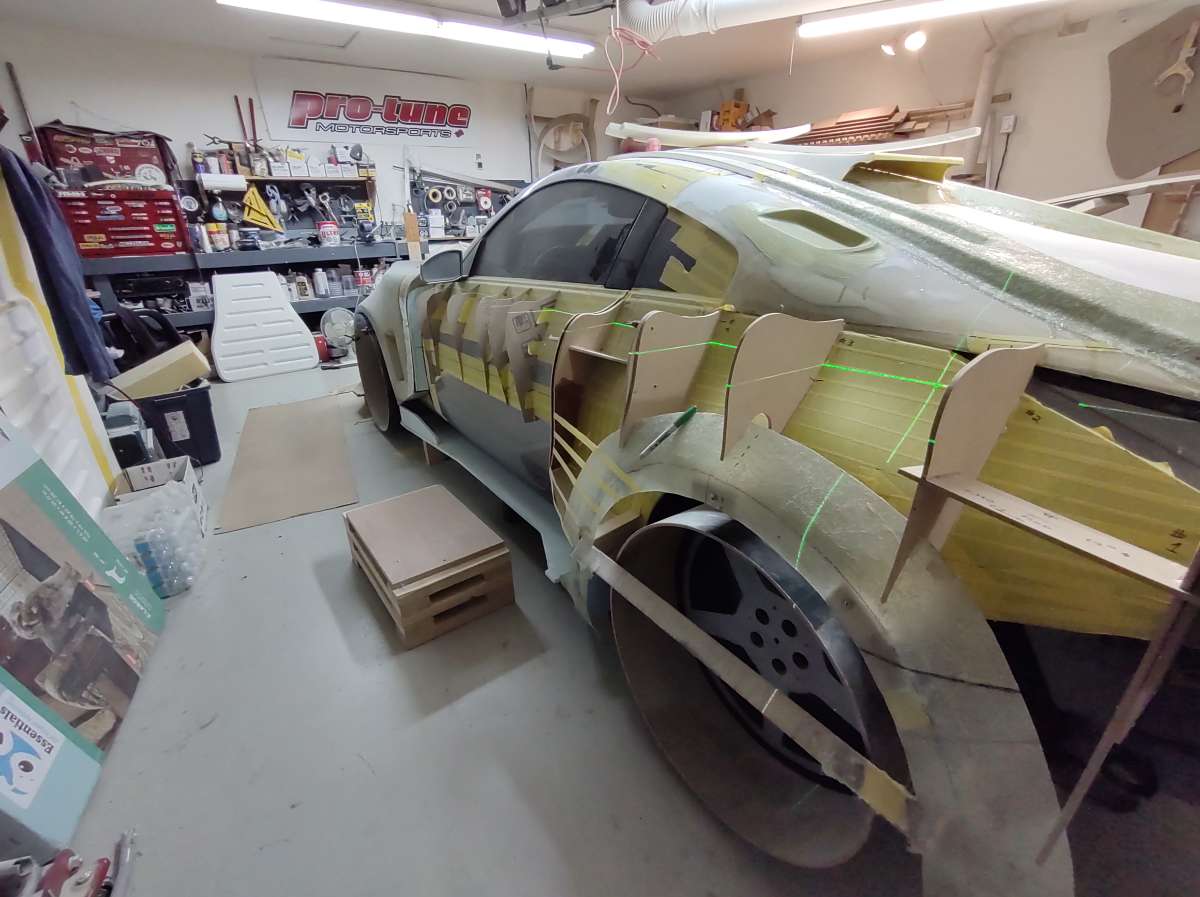

here I am using the laser in lock mode , which means it won't self level , it's a great feature .

You can set an angle , i am using the angle finder so i can repeat on the other side , plus putting insurance marks on the wall .IMG_20210726_150250882.jpg.b33122680b2a34e608e09530a7613cb4.jpg

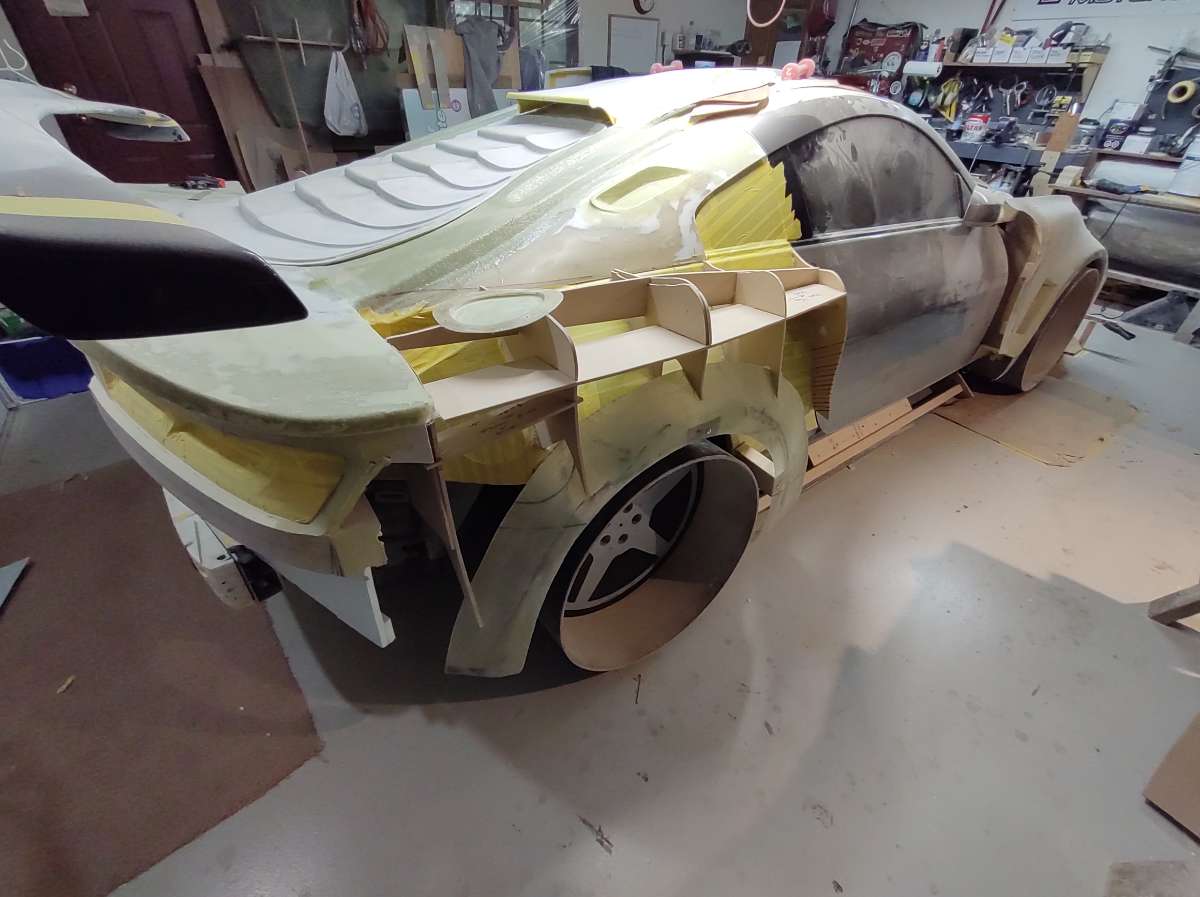

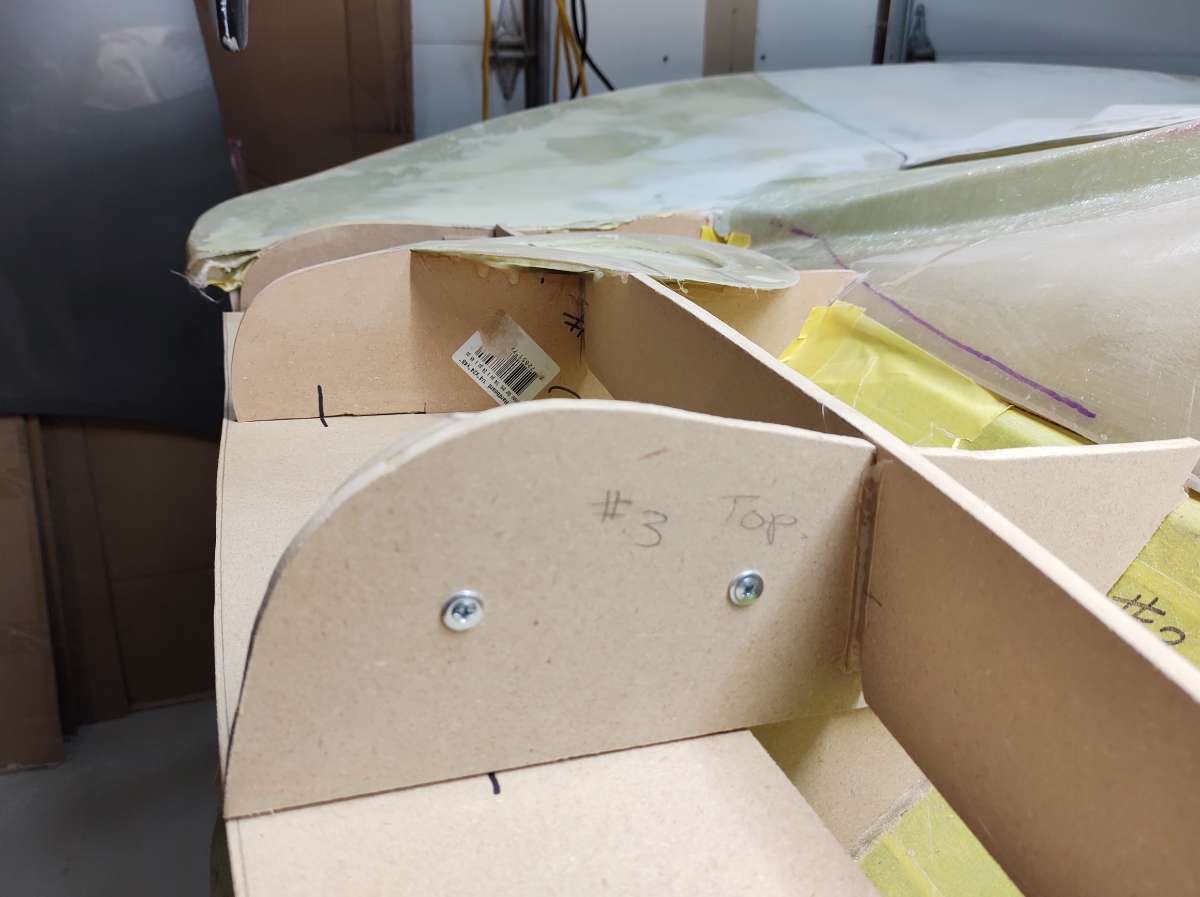

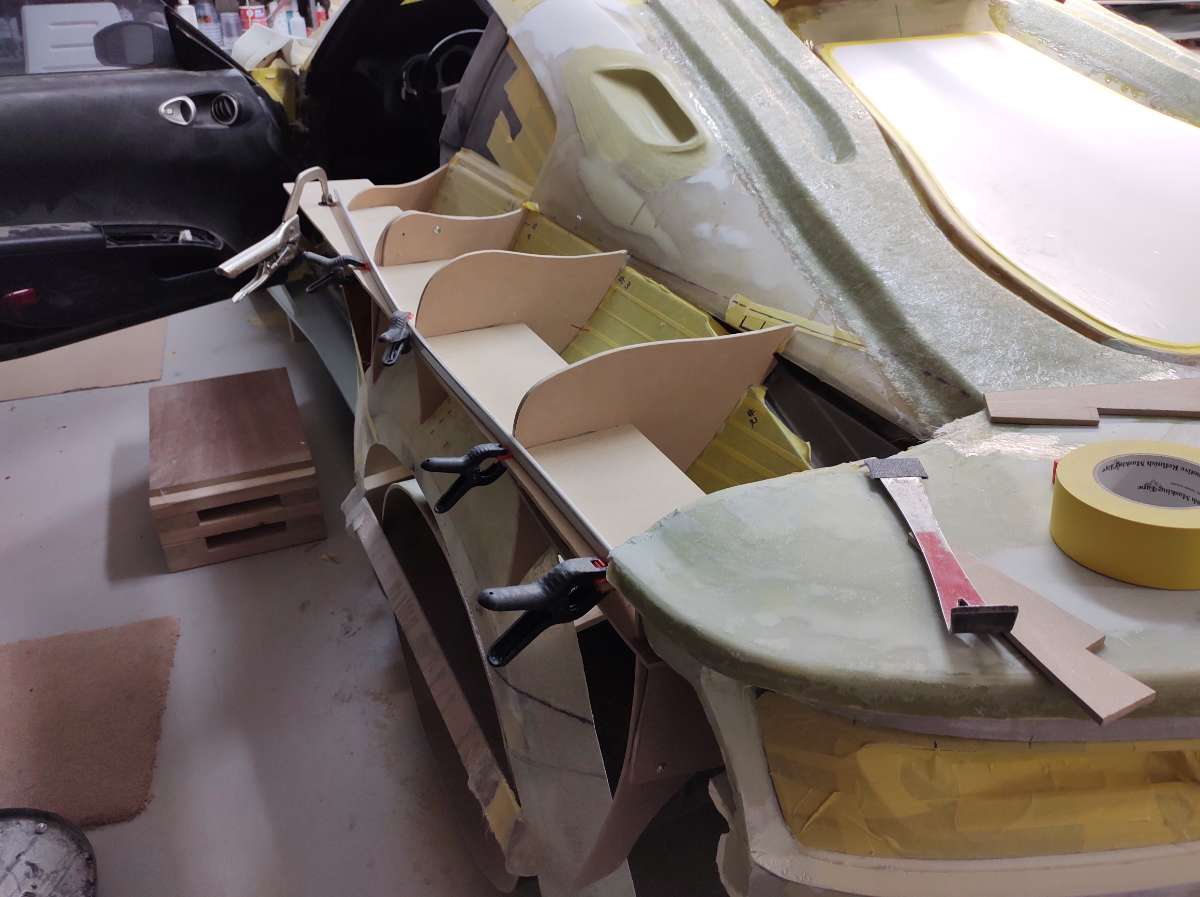

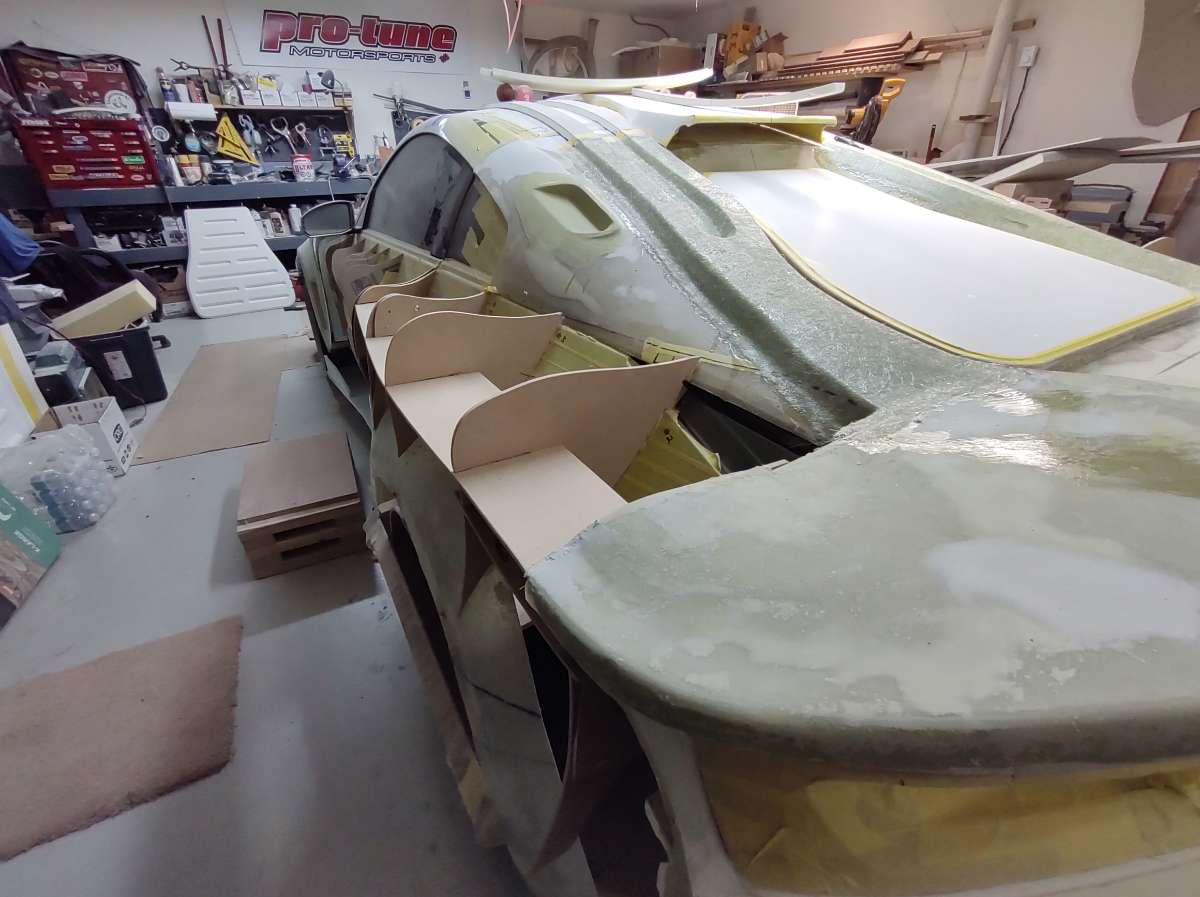

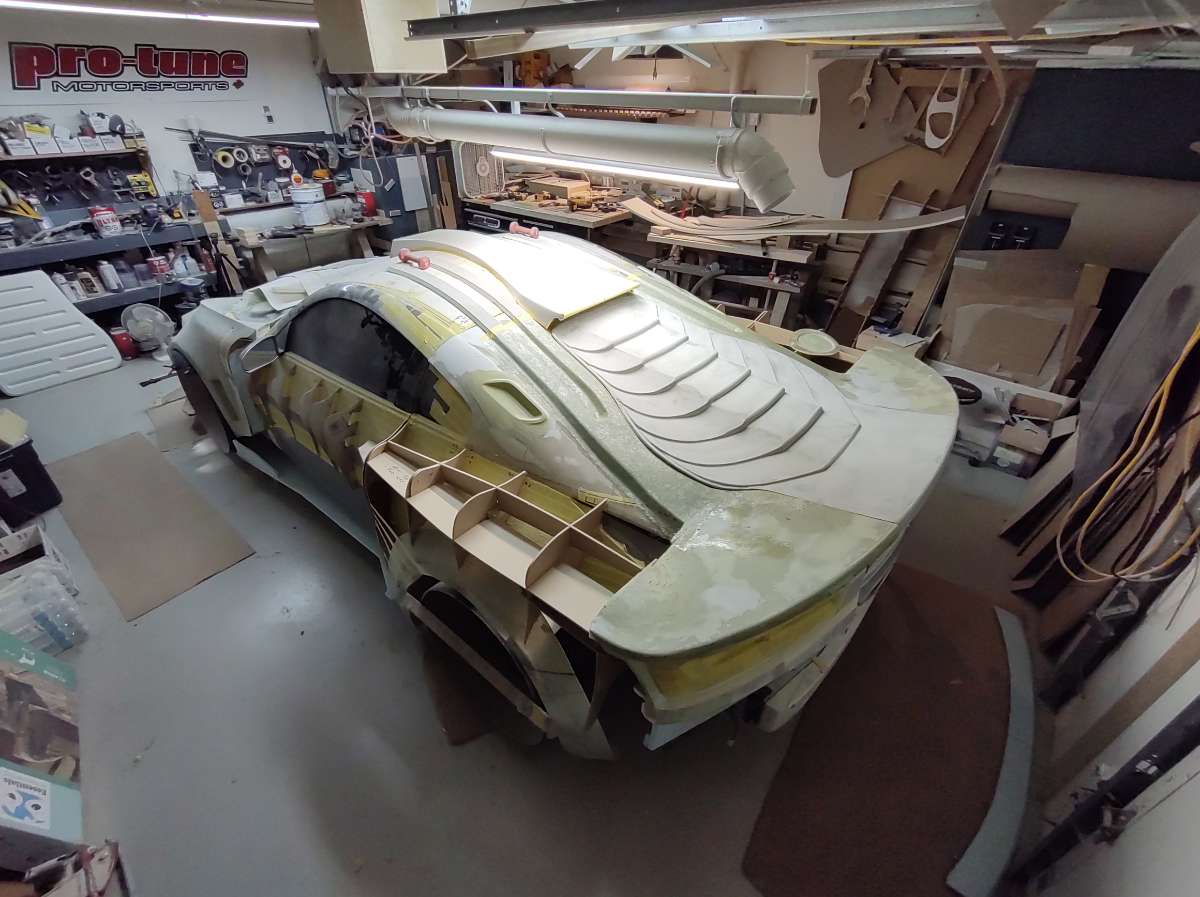

here I am interlocking the bucks together so I can keep the shape and make it strong enough to work it with tools once filled with foam




Here I am laying out the cut with a baton , I an I will copy the part for the other side before gluing it in place .












I am getting excited again , seeing some progress .













  • Like 9
Link to comment
Share on other sites

Another update

Working on the quarter panels .............gotta get this car done !!!!

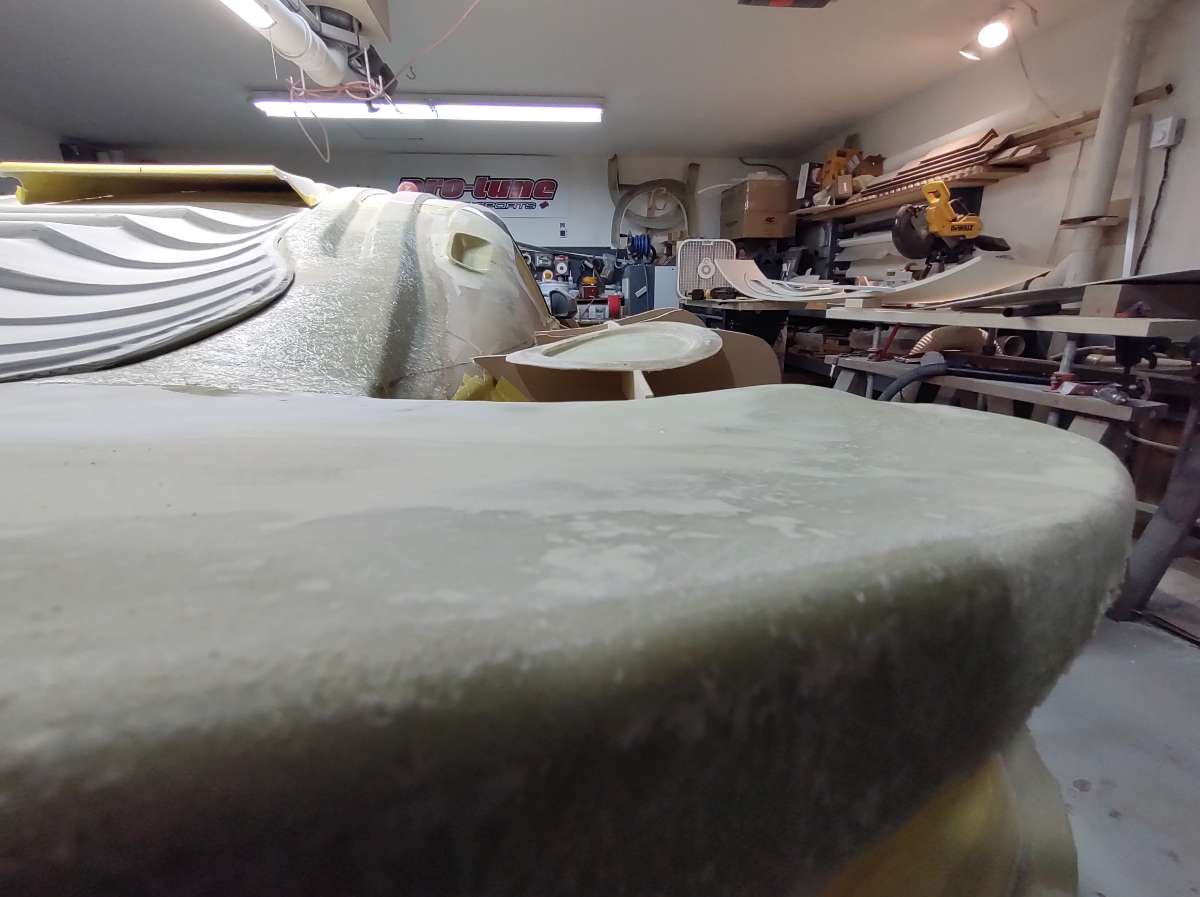

Gas fill door , will be using the factory lid , made the quarters to match the shape .



















cheers for now ............

  • Like 2
Link to comment
