So here I am again with more DIY madness

I live in Southend On Sea the roads are crap and there are speed humps everywhere including down my road shortly and I'm fed up with having to plan my route around town based on speed humps I can't get over

but as some of you may know I'm partial to a project and some would also say tight. actually I'm not tight I just do a really crap job for a living (literally) so demand value for money when I part with it

This is not going to be a shiny setup for show hopefully it will all be hidden and OEM looking and much of it will be, just not Nissan mostly Audi with range rover height sensors, aftermarket Bags and a custom built controller

cost wise it should be coming in at £600-£700 just got to wait for stuff to arrive now :)

Edited by andybp
  • Like 5

Share this post


Link to post
Share on other sites

cool,looking forward to see what you come up with, even my airlift 3p is not perfect and always thought is something simple to do but  overpriced because of the companies/brand....

  • Like 1

Share this post


Link to post
Share on other sites

signed up in anticipation :thumbs:



:snack:

Share this post


Link to post
Share on other sites
3 hours ago, Keyser said:

signed up in anticipation :thumbs:



:snack:

no pressure then :lol:

  • Haha 1

Share this post


Link to post
Share on other sites

excited to see this.... Ive got coilovers, but ive been considering air cups if i have a nightmare with the height i wanna be

  • Like 1

Share this post


Link to post
Share on other sites

My air springs arrived in the country today and will be delivered monday hopefully, I already have the compressor with built in exhaust valve, the valve block with built in pressure sensor also the air line and all of the electronic goodies for the controller writing the code for the controller is giving me a headache but I'll get there this heat is making it really hard to concentrate all I really need for now is the tank and height sensors which I haven't ordered yet

Cost so far £500 so unless I've screwed up it should come in about £600-650

:)

Share this post


Link to post
Share on other sites

Time for an update with some pictures this time

so far it's just a pile of bits



pipework




valve block (audi)






compressor with built in exhaust valve

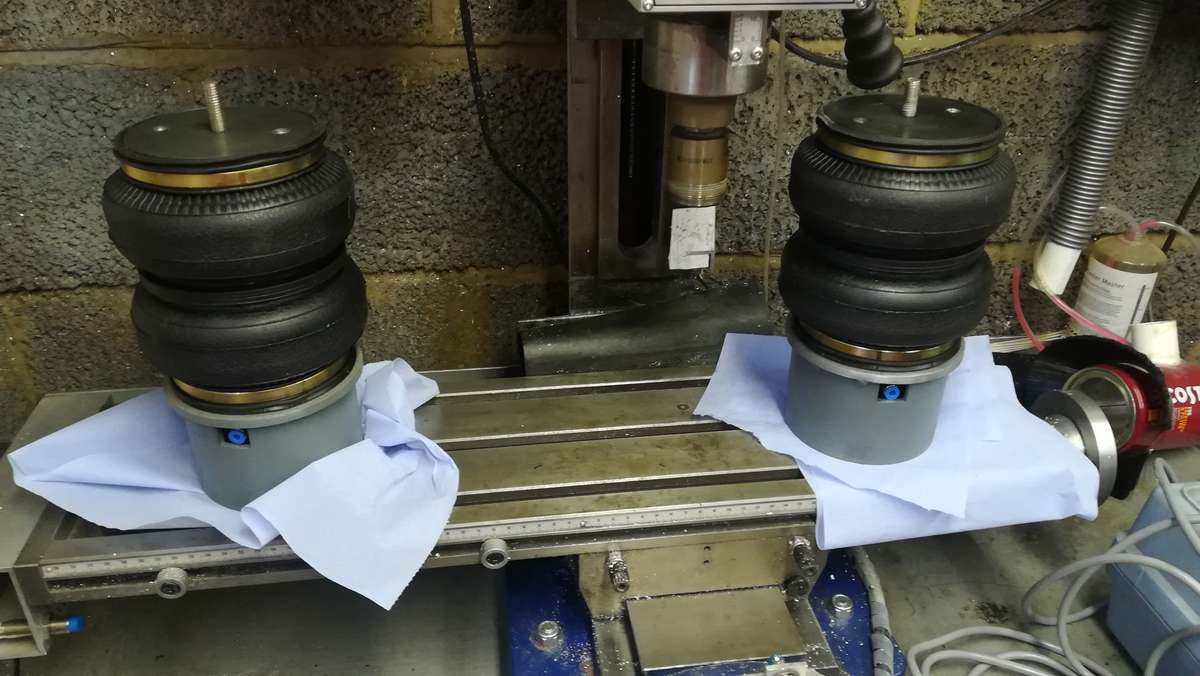

Front springs which should screw onto my BC coilovers









Rear springs I need to make up some adapters to mount these









and the electronics

2.4" touchscreen






arduino uno R3

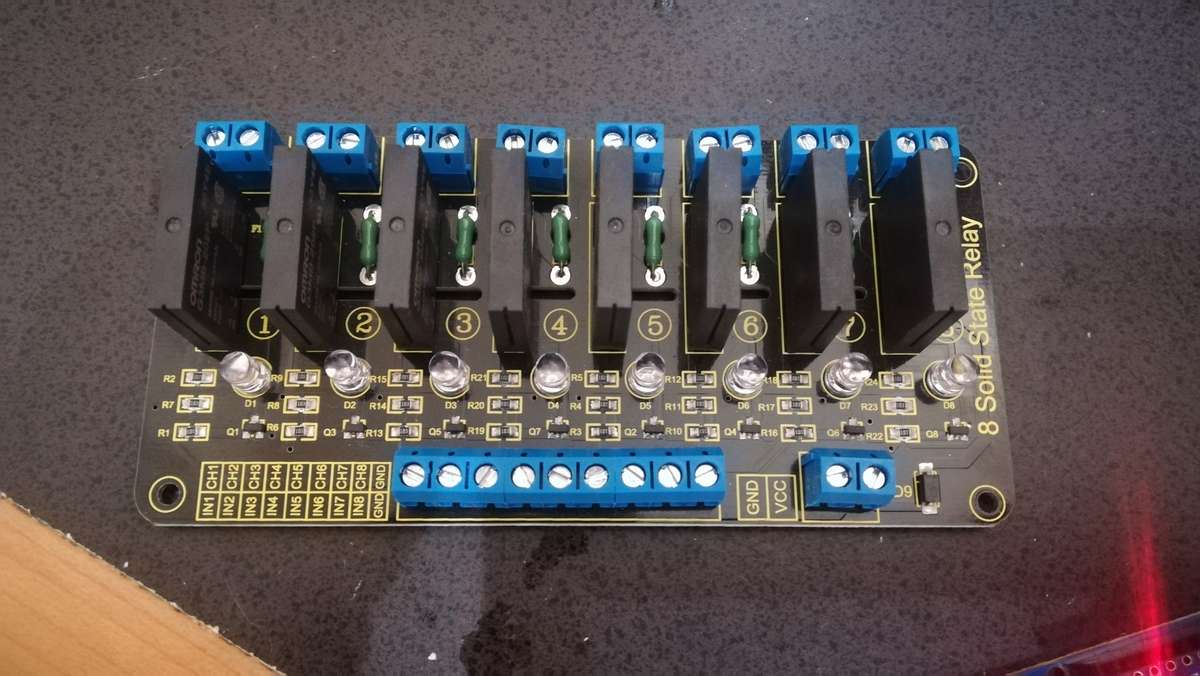

and finally an 8 channel solid state relay card






Throw all this and another few bits into a 350Z and stir add salt and pepper to taste ;)

:)



  • Like 3

Share this post


Link to post
Share on other sites

Ahh the ingredients have arrived just need the chef to put it together and cook it up now :thumbs:



What power can the solid state relay handle?

Share this post


Link to post
Share on other sites
6 hours ago, Keyser said:

Ahh the ingredients have arrived just need the chef to put it together and cook it up now :thumbs:



What power can the solid state relay handle?

they are each rated at 250 vac at 2 Amps the solenoids in the valve block should draw about 500 mA, I will also use one of these channels to switch a 40 A relay for the compressor

cost about £15 for the 8 Channel board

:)

  • Like 1

Share this post


Link to post
Share on other sites
1 hour ago, andybp said:

they are each rated at 250 vac at 2 Amps the solenoids in the valve block should draw about 500 mA, I will also use one of these channels to switch a 40 A relay for the compressor

cost about £15 for the 8 Channel board

:)

Damn that's the first spanner in the works I thought something seemed wrong when I answered this post, they sent me the wrong board these relays will only switch A/C so that will be going back :angry: and guess what they don't have any of the DC ones that's what happens when you rely on other people I think I'll just make my own.

:)

Share this post


Link to post
Share on other sites

I've had a reasonably successful weekend between decorating

I have a new relay card to replace the incorrect one I was sent but I had to go with standard mechanical relays, not the end of the world, also got started on the rear air spring spacers so far all it's cost me is my time as I have used some items I had lying around, two fire extinguishers and some 6mm ally plate





















should get the rest of the machining done and welded together tomorrow

:)

  • Like 3

Share this post


Link to post
Share on other sites

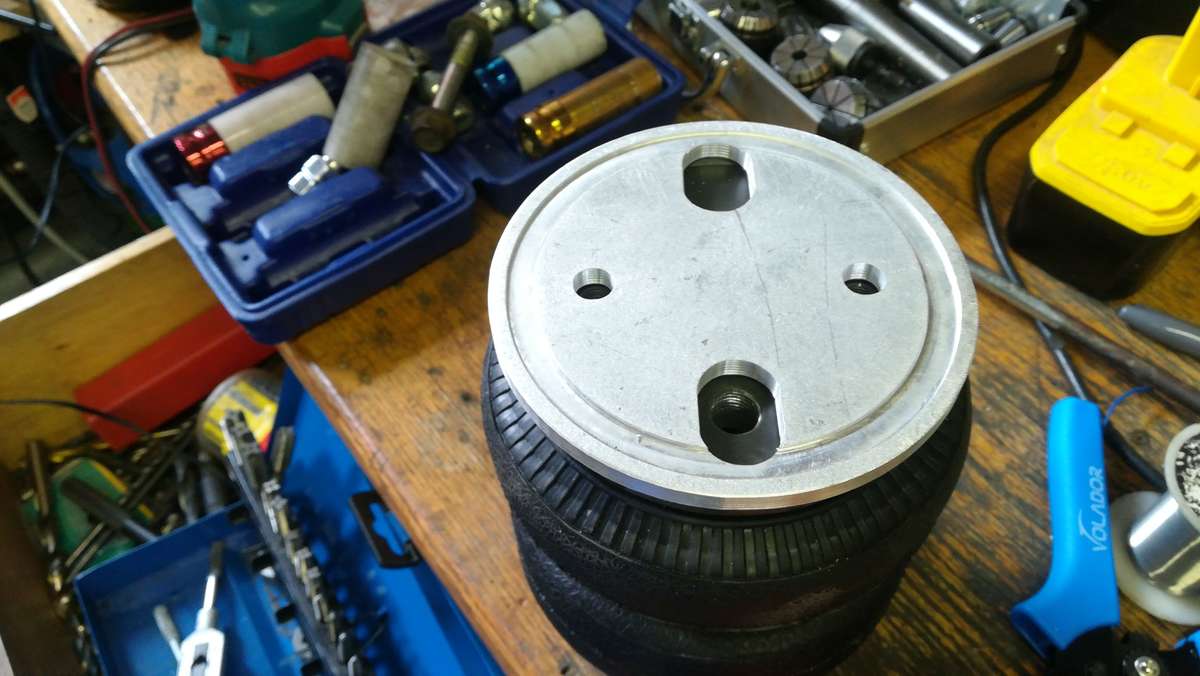

Got the rest of the machining done today it looks like I've just machined a lot of random holes into it






the cutout in the rim at the bottom of the first picture is where the airline will go in and will face inwards towards the diff

the three square holes in a triangular pattern will locate in the tags in the top of the 350 spring mount and will prevent the whole thing from turning

the hole in the center is for the top fixing bolt which will be done up with a spanner through the slot which is easier to see in the second picture and will face outward for easy access

the other two holes are for an allen key to tighten the cap head bolts which will fix the spacer to the airspring








Just need to weld the spacers to the base plate as seen in the next picture sitting as it will on top of the airspring








:)



  • Like 2

Share this post


Link to post
Share on other sites

Loving the forward planning by giving yourself access holes :thumbs:  I'm forever cursing designers who make stuff but don't consider access for maintenance when at work.

  • Like 1

Share this post


Link to post
Share on other sites

Looking good mate :thumbs:



Keep up the good work :)





  • Like 1

Share this post


Link to post
Share on other sites
6 hours ago, scobie140 said:

Loving the forward planning by giving yourself access holes :thumbs:  I'm forever cursing designers who make stuff but don't consider access for maintenance when at work.

That's the thing that's taken so long not the actual work ,all the planning, measuring, test fitting and trying to think of everything :headhurt:

:)

Share this post


Link to post
Share on other sites

This is the top spring mount I was talking about with the three locating tabs that will locate my spring spacer






people usually drill a hole in the middle and use a Nutsert for fixing not sure why because if you drill the hole you can get a nut in over the top and a spanner to hold it, it's tight and fiddly but not too bad

I put a stud in mine , easier than trying to get a bolt in afterwards






here it is with the spacer in






all finished and fitted to the springs






I can't actually fit any of this yet as the inner adjustable bolts on the spring bucket/arm sheared off both sides oh I laughed (:angry:) then used the phrase "you're taking the p!**" to the local Nissan dealership when he said the bolts would be £21 + vat each and that's without the nuts which I also needed and I'd have to wait till Tuesday luckily we have some Excellent and helpful traders on here thanks Adrian@TORQEN both nuts and bolts for what Nissan wanted for 1 bolt

I can't start on the front till I get my nuts and bolts for the rear and can get it off axle stands anyway it's been raining all day so I got on with the electronics and some of the programming oh I also got my height sensors






It's coming along

:)

  • Like 3

Share this post


Link to post
Share on other sites

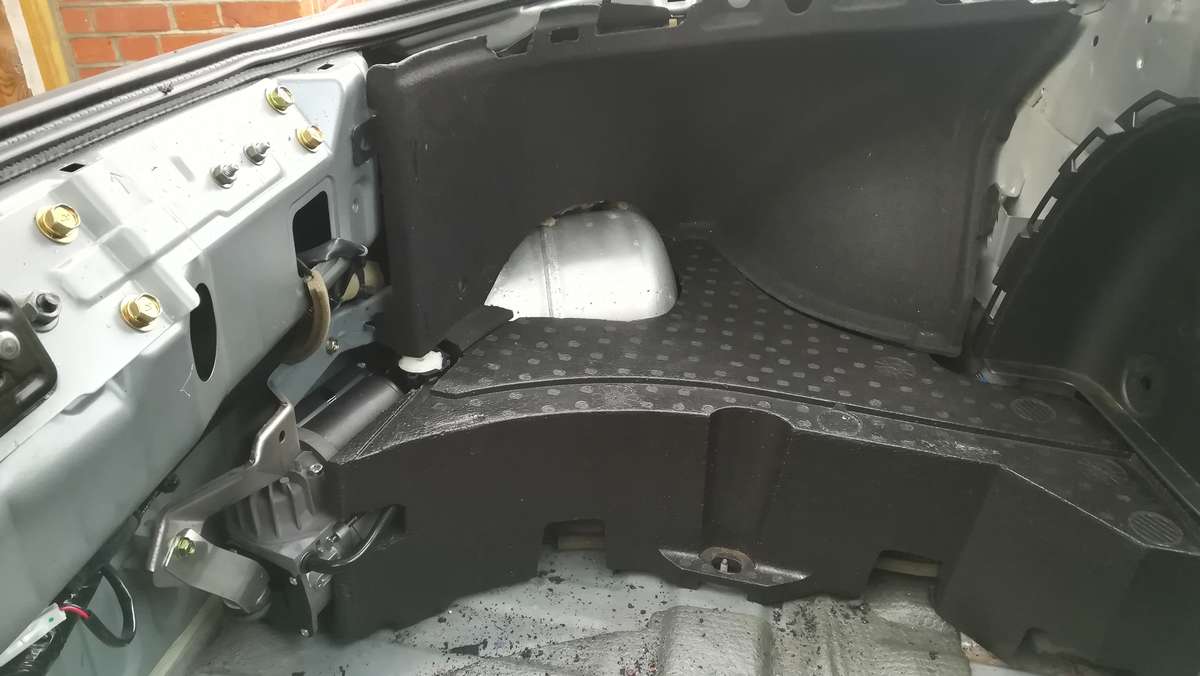

No bolts yet so got on with installing the compressor and tank, first I took out most of the rear trim and passenger side polystyrene  that makes the spare wheel well

as shown in this photo with my finger in it (just to make Keyser feel like he's not the only one)






also removed the bose amp which won't go back and treated the surface rust then I made up a bracket with rubber mounts for the compressor

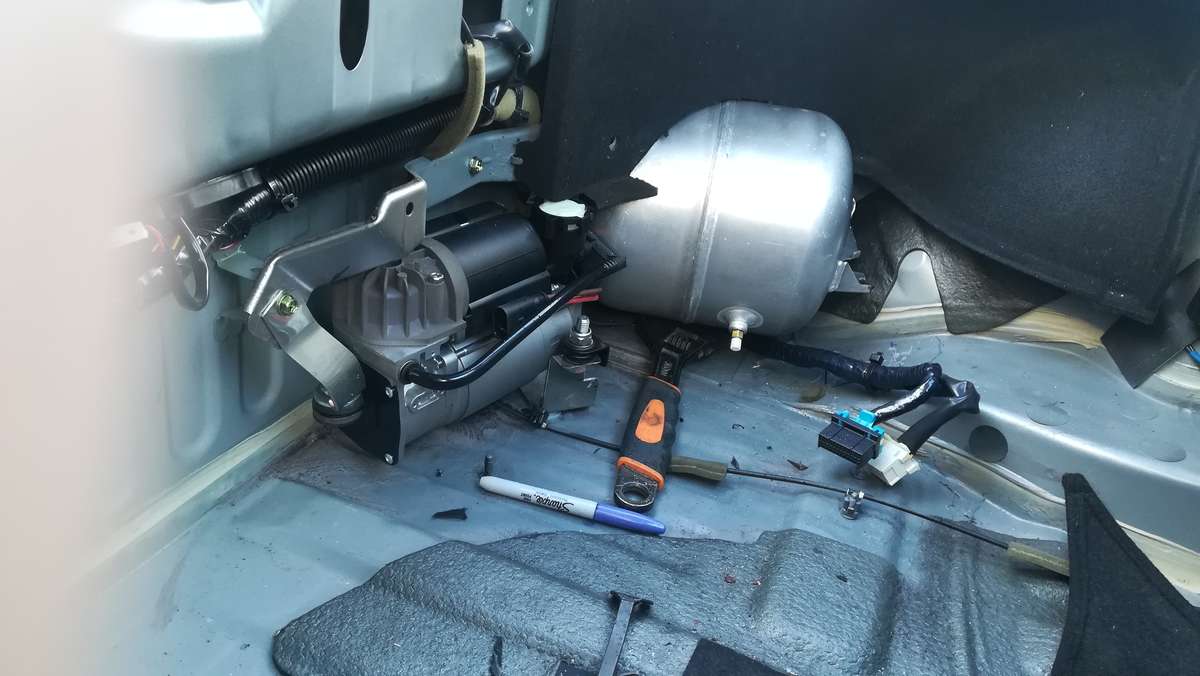

and here it is fitted also showing the tank location






and here it is all fitted.

The missus is going to make me a new carpet if she can't modify the old one to fit the tank






:)

Share this post


Link to post
Share on other sites
27 minutes ago, Daisyduke said:

Loving this.



Bet kits would fly out if you had the time to produce them.

If you look at the amount of time it's taken planning and researching finding the suppliers programming my cnc and making everything it would work out pretty costly but to actually just produce kits.



brackets 4 for height  sensors,2 for the compressor ,2 for the tank, 1 for the electronics and 1 for the valve block

2 rear spring spacers

4 air springs

4 height sensors

1 compressor

1 tank

1 valve block

airlines and fittings

wiring

connectors (bloody expensive for what they are)

electronics

hardware (nuts and bolts)

and a set of suitable coilovers



the electronics and wiring, brackets and rear spring spacers are the only things that need to be made the rest is just bought in from various suppliers

would probably cost approx £2000 less than commercial electronically managed setups or if like me you already had suitable coilovers  £2500-£2700 less

it's gonna cost me about £700 but I don't charge myself for labour :lol:

:)

Share this post


Link to post
Share on other sites

The bolts arrived today from Adrian@TORQEN so the rear bags are now fitted as are the rear airlines.






I've decided to get everything working on the rear first before fitting the front then if I desperately need the car I just need to replace the rear springs though hopefully it won't come to that as I hope to have it back on the road monday/tuesday as long as nothing goes wrong also I've set it up as a pressure based system for now until I can get the height sensors fitted

:)

  • Like 1

Share this post


Link to post
Share on other sites

Im absolutely loving this topic. Any chance you could write up a guide and parts list once complete? I know its likely to be pretty "full on" but at literally 2k cheaper than commercial options, im willing to give it a read. As for your incentive, you could whip up a few sets of brackets on your CNC machine and sell them with the guide so people to copy your system :)



I have the same coilovers as you and am literally fed up of smashing every speed bump in sight to the point where i barely use the car unless i 100% know theirs no speed bumps along the route!

  • Like 1

Share this post


Link to post
Share on other sites
On 10/08/2018 at 19:43, andybp said:

as shown in this photo with my finger in it (just to make Keyser feel like he's not the only one)



Hey now @andybp  you're lucky thats not my finger in that picture or I'd be looking into copywrite  infringement!!  :boxing::rant:



:lol:  :lol:



Keep up the good work, Then I need a set for the 370 so if you could just pop over???



Keyser





  • Haha 1

Share this post


Link to post
Share on other sites
