Snjur

No not yet I was focused on camshafts. I think this week i will find time to play with harness bar

Nope. As you know VQ is prone to extensive heat production even when stock. After this cooling upgrade with Nismo thermostat and Skunk2 Alpha rad even in cool weather coolant temp is behaving exactly the same like stock. Temperature needle is pointing behaving same like car was stock and with stock cooling system. For me this system works flawlessly in normal driving and on track. Plus I'm on stock fans and they are not kicking in much at all. And i do not have AC system and radiator from AC

Was recently a discussion on Mishimoto rad's. There are numerous cases of stock car overheating in daily driving. Had it on my Greddy Twin Turbo and from start i had overheating issues in normal traffic once i was halted behind lorries or in slow driving. On track 2 fast laps and temperature goes up. No need to mention on numerous hours and methods spent to bled the system. On the end i ditched their racing thermostat and went with Nismo one and Skunk2 Alpha rad. With this car was abuses on track for 40 laps and coolant temp never went more than 93°C

New bushings for rear end

Have no idea, I've heard for them so I decided to give them a try. On next oil change I will cut oil filter with grinder so will see if they manage to hold any metal particles

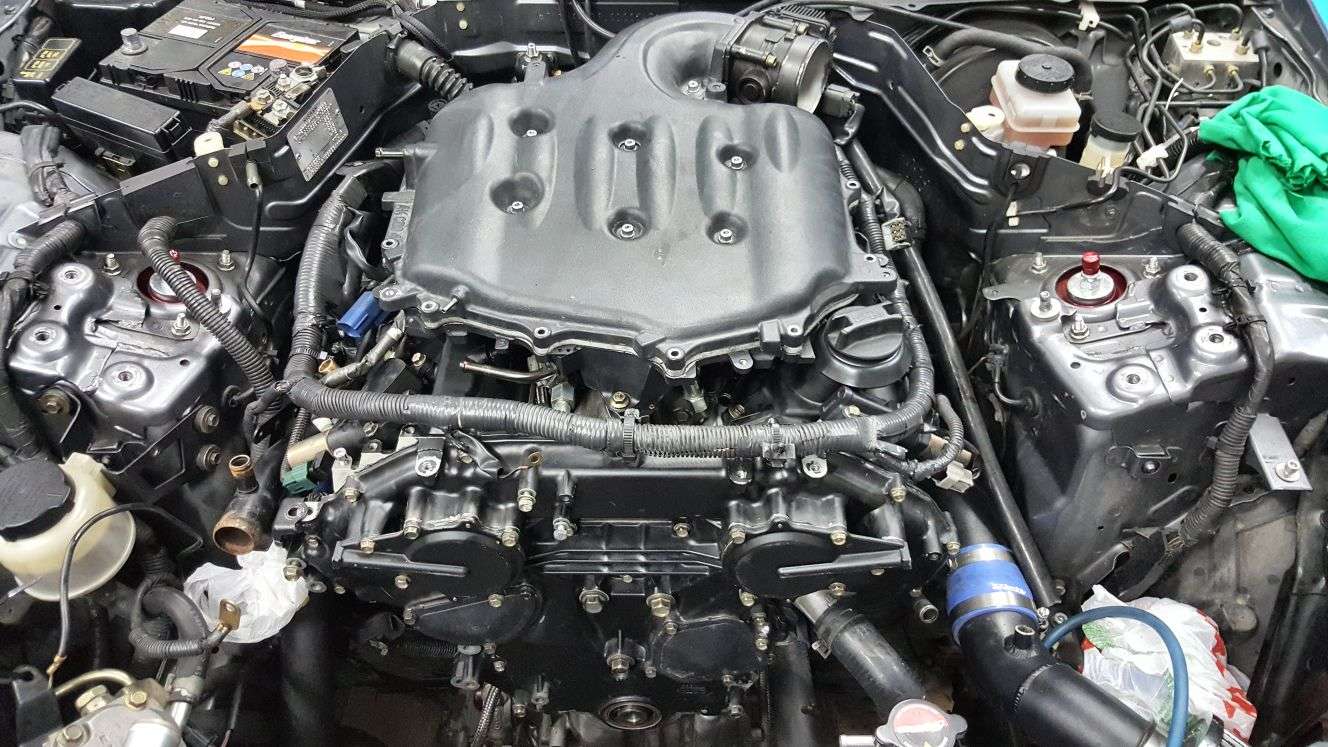

Stealth look completed! Quick photo as I need to clean bit engine bay before a proper picture. Remains to replace blue silicone hose from radiator to expansion jar to complete all black look. Strut bar as well as new intake aluminium pipe have been powder coated in black. I think to an amateur and untrained eye it is hard to notice any changes inside engine bay. Once all properly cleaned it will look almost like OEM Just a few revs with new camshafts and car feels completely different on throttle than with OEM cam. Since we still didn't tuned the car on dyno I haven't tested it aside of reving it. But Rpm needle is jumping much faster with this cams and throttle is reacting instantly on touch. Cant wait to hit the dyno and test acceleration and behaviour of the car VID_20180127_164320.mp4

I purchased mine over H tune. There was no problem at all in contrary very prompt communication and delivery was on time no delays Edit I ment H Tune

Today I've managed to resolve a problem of a stick clutch pedal. I was sure it was a slave cylinder so I have purchased replacement one from Torqen. Replaced it this afternoon but... Again we had a hard time bleeding the system. After looking and inspecting all the system in the end RJM clutch pedal was loose and once tightened we managed to get nice pedal feel. Secondly I want to replace Greddy Air filters which came with this kit. We found out on buddy's Greddy TT they are restricting air flow. They did a dyno run without Greddy air filter they had gains of almost 30 hp. Did some measurements today so i will give a shot to KN RC9980 air filters. Hope they will fit. Also purchased few goodies for oil. KN oil filter and magnetic brace which is mounted on oil filter in order to collect any metal particles that may be found in oil Still pending is to paint Intercoler in black to have more stealth look, fabricate main intake pipe from IC to throttle and replace few bushings on rear end.

Glad to see revival of twin turbo topics too

I have these what buster attached and im 99% sure it's exact one. I have Sparco R100 and comparing to OEM ones they do sit bit lower but not so much. Same problem im facing on track with helmet on. I just need extra inch. Also passenger one is not "ideal" as its only secured by 3 bolts so i will need to cut and weld additional inch of steel in order to secure it with all 4 bolts. But for this price they are best buy

Chargespeed bottom line add on's for rear end and TS rear diffuser replica have landed

Another cool upgrade will be 2 x 2.4 inch OLED screens which will replace factory OIL pressure gauge and Voltmeter for battery. They will be connected to Haltech and will transmit real-time data of choosen options. Very soon they will be done so i will post video but with 2 data choosen on screen is very visible and quite easy to monitor.

Cool car. Always had a soft spot for them. Recently one has popped out for sale in Croatia https://www.njuskalo.hr/auti/mitsubishi-3000-gt-vr4-oglas-23957349

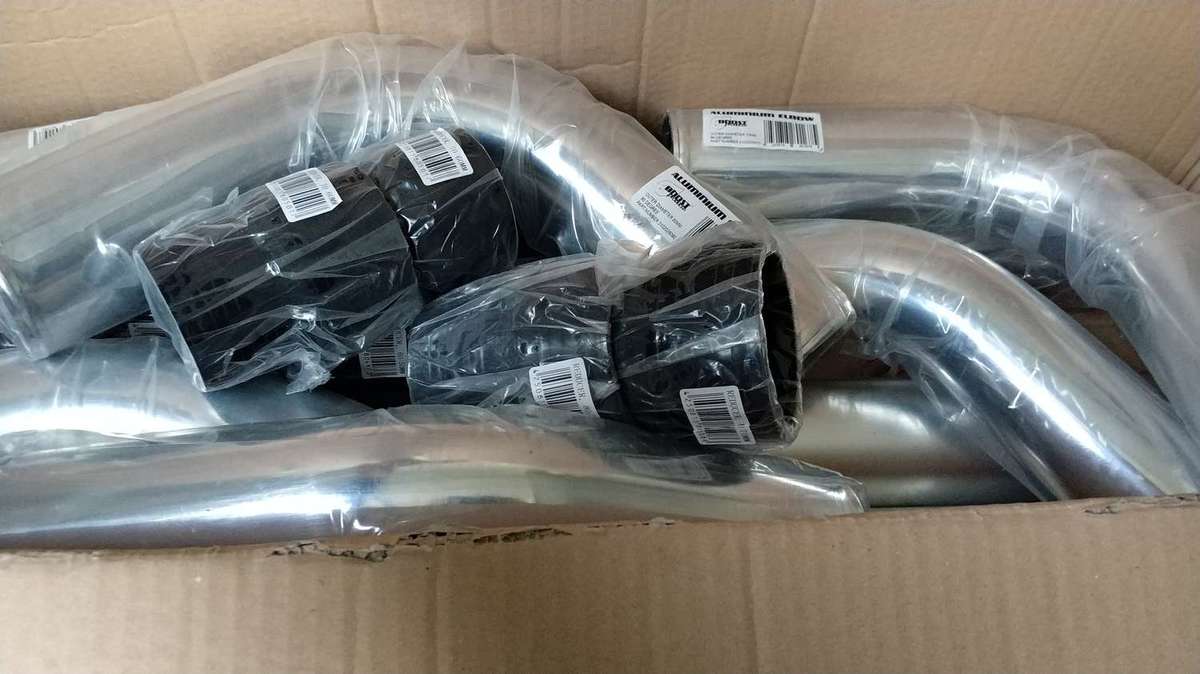

So Kelford cams are installed. Remaining few bits and pieces to sort out before heading to dyno and seeing numbers. Also we need to fabricate main intake pipe from IC to throttle from aluminium. All elbows have arrived just need to weld it and powder coat it to black.

They are designed for 30psi pressure and 640 bhp with OEM cams they outputted on 22 psi. They weren't max out, still room for more boost but there was no gains in numbers

More reason to upgrade them later on of they fail They are old technology turbos but quite reliable. Who know maybe in future i will go with something more modern like ball bearing but let us see first what numbers will be with cams now. I recall i have read theses are in theory 450/500 hp capable turbos

This is T3 flange also turbo's are almost new. It would be waste to take them down now

Mitsubishi Td06-20g

I was thinking on it but... Than i need new manifolds plus new turbines it's quite costly. We are just now in progress of installing Kelford Cams T182 which are Turbo spec cams. I'm hoping that with cams we are going to get this extra what in top end to overpass 700 bhp. If not than i will go with Methanol

We will start with paperboard templates first before we start material selection. Aluminium would be the best some 2 mm thickness only thing which concerns me with aluminium is in cases of things going wrong it can become quite hazardous on highway/track. Abs plastic maybe with some heat resistant/protective materials on top side under hot elements.

This is performance driven project. Goal is to get more downforce. Few ideas already on how and where to start but all will be posted here. Also any comments and ideas or discussion are more than welcome as we are just a bunch of enthusiast and not professionals in aerodynamics. From mine point of view I reckon it would be easiest to combine front and rear section of the car. Similar to GTR on pictures above and than see that can be done with Mid section and if it can be easily joined with front and rear

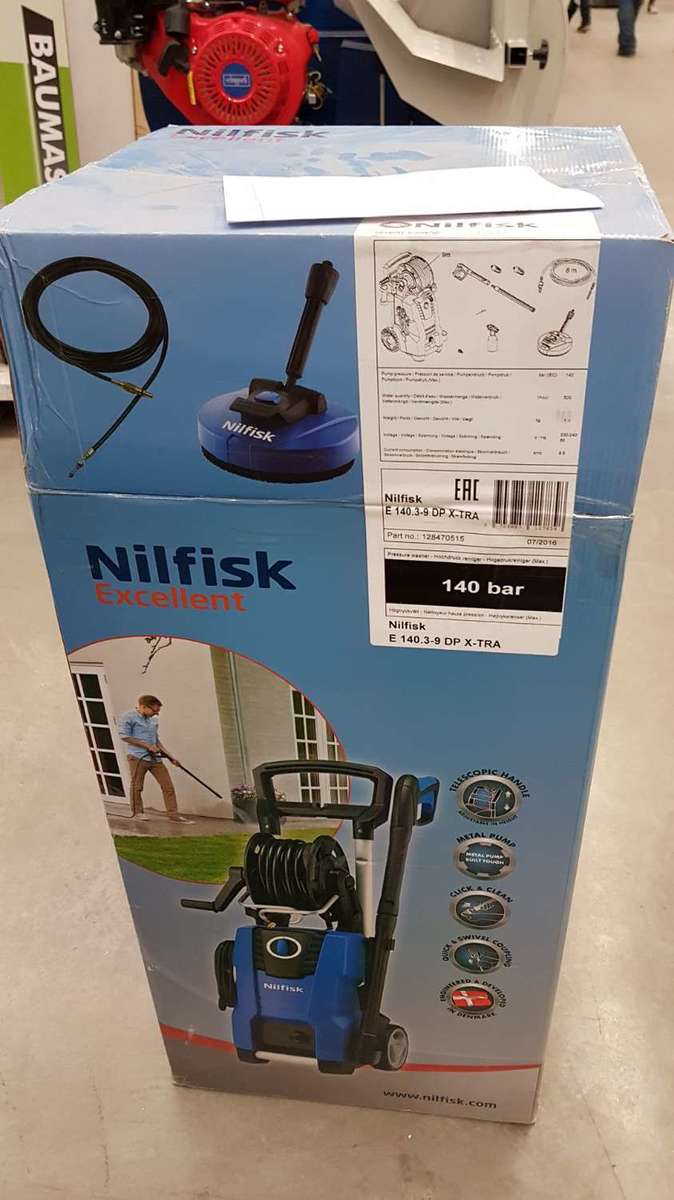

Just bought this Nilfisk With discount 258 euros with couple of extras

+1 for SGS.

Thanks. I think once side steps and splitter at front are mounted in Piano Black color it will be quite good. Im tempted to wrap rear of the car as well in gloss black. Something similar to Peugeot 308gti 2 tone color

Finally Work Emotion T7R 2 piece from StevoD. For now front ones are poking out. Will need to see what can be done there as car is on stock geometry settings. Maybe if I go with more agressive camber like 2° degrees they will line with arches. I was afraid how they will look on car due to center colour but in person they look awesome
