Door Handle Mounted Controls

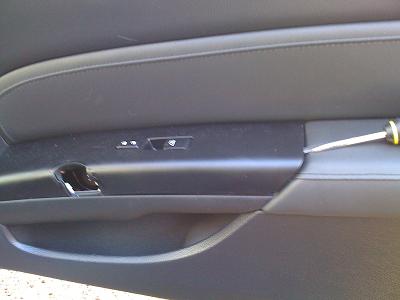

Use the tip of a small flat blade screwdriver to pop off the screw cover at the bottom of the door grip area.

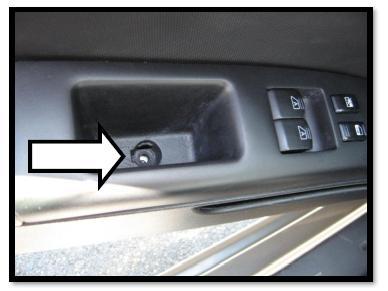

Use a #2 Phillips head screwdriver to remove the screw

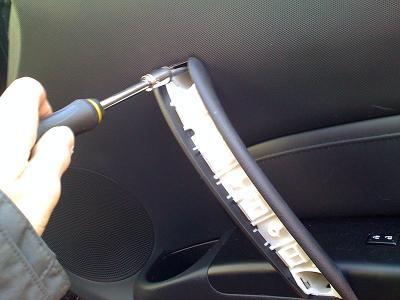

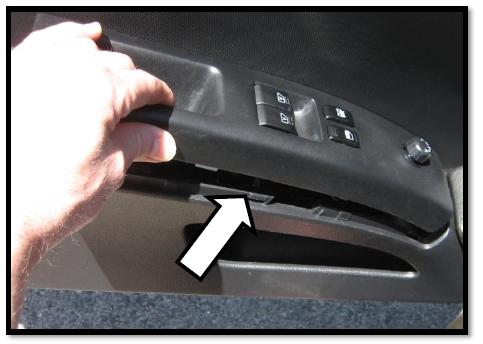

Grasp the outside edge of the door grip (may take two hands) and pull slightly back and up on the door grip piece until it snaps out of place from the door panel. It may be easier to wrap a medium sized flat blade screw driver blade in electrical tape and pry the grip loose in the area indicated by the arrow below.

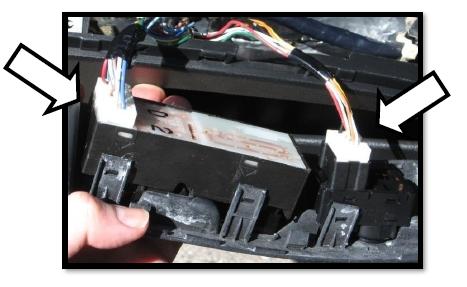

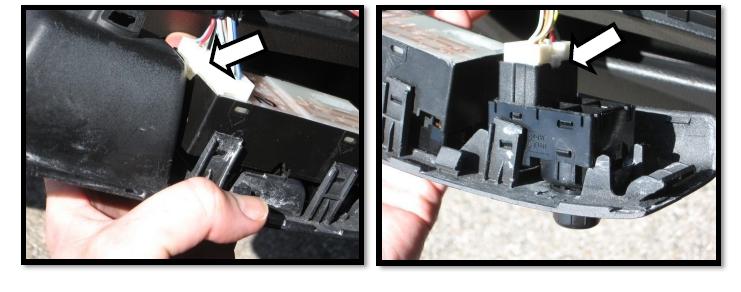

Turn the door grip upside down and unplug the two connectors going into the control box.




Link to comment
Share on other sites

The release tabs for the connectors are located on the outboard sides of each connector. Use a small flat blade screwdriver to press on the release tab and pull the connector free. Grasp the ends of the connector when removing; do not pull on the wires.




After the connectors are loose, take the assembly to your work area.

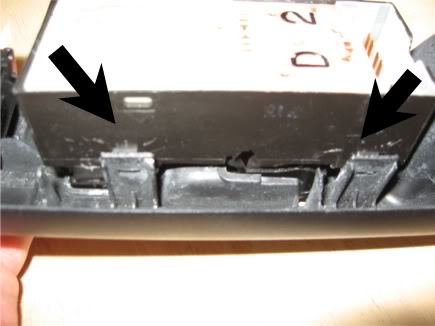

Use the small flat blade to pry the retaining clips loose and remove the control box from the assembly. This may take a bit of back and forth as the clips tend to want to jump back into position. Be careful you dont pry too hard and break a clip.

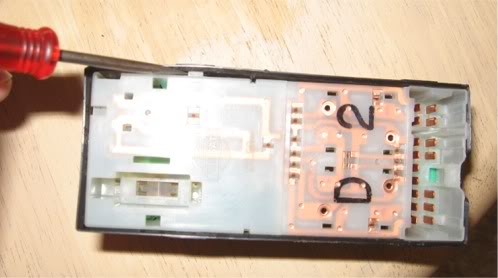

Use the small flat blade screw driver to remove the control box housing. When the housing is loose on all sides, pull it straight up and off. The control buttons will come up with the housing. You do not need to do anything else with the housing, set it aside.




Link to comment
Share on other sites

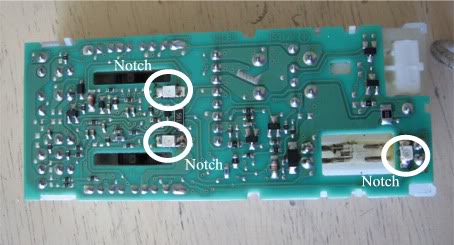

You should now see the circuit board. Remove the LEDs that are circled. Notice the orientation of the notched corner of each LED. The notch designates the Cathode end. The new LEDs must be replaced in the same orientation. The pic shows the relative location of the notched corner with the word "Notch".

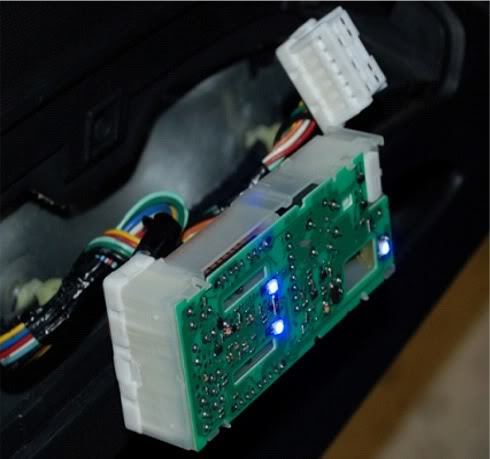

After soldering in the new LEDs, take the board to the car, connect the large connector and turn the ignition key to ACC. You should see all three LEDs light up.






If the LED's do not light up, double check the orientation and / or resolder and try again.



Once your LEDs are lighting, you are ready to reassemble



Check to make sure that the power window actuators on the circuit board are centered in their respective slots. If they are not centered, move them into the center of the slot.



Snap the control box back into the housing and check the action of the switches. Everything should have the same feel as before.



Snap the control box back into the door handle assembly.



Reconnect the wiring connectos to the door handle assembly and before you snap that back into place on the door, turn the ignition to ACC and check the operation of the window switches, the door locks, the mirror control and the passenger side controls kill switch.



If all the switches are working normally, snap the door handle into place in the door. If not, make sure the wiring connectors from the door are snapped in tight, if still no good, take the assembly apart and confirm the window actuators are centered in their slots.



Insert and tighten the securing screw and replace the plastic cap.



The process for the passenger side door is identical except that there is a slight difference in removing the door handle assembly and there are only two LEDs to replace.

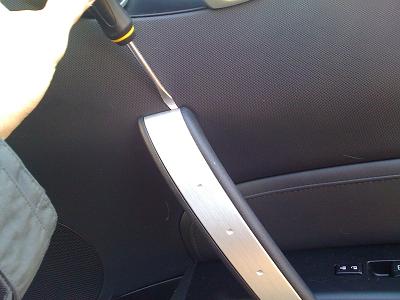

First, use a flat edge to pry up the top part of the brushed aluminum cover plate:




Link to comment
Share on other sites

With that cover out of the way, remove to two screws holding the handle to the door (these are 10mm):






With the screws removed, the handle will pull out from the door



Now that the handle's out of the way, we remove the panel that holds the buttons.

It has clips all the way around - I started at the rear, went around one side to the front, then it lifted out pretty easily:








Once you have the assembly off, follow the same steps as the driver's side above:

- remove the housing from the assembly by prying the fasteners loose

- remove the control box from the housing

- remove and replace the LEDs (note the location of the notches)

- test by plugging into the wiring harness



NOTE - the drivers' side controls must be connected in order to test the passenger side



- snap the control box into the housing (ensure window actuator is centered)

- snap the housing into the assembly

- reinstall the assembly onto the door





Door Handle Mounted Controls END
